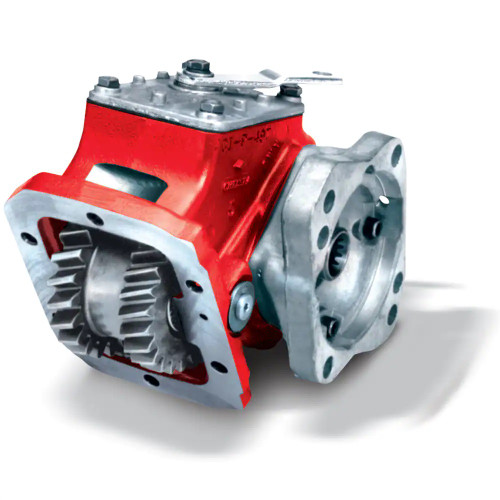

The Chelsea 447XSETX-V3RA or 447XSETXV3RA is a 6-bolt power take-off from the Chelsea 447 Series, engineered specifically to eliminate interference problems inside the transmission PTO opening. Shift type is wire/cable mechanical. The 1-1/4" round output shaft (with keyway option) delivers up to 43 HP at 1,000 RPM and 21 HP at 500 RPM. Intermittent torque ratings range from 201-300 lb-ft; verify your application's actual torque requirement against the Chelsea application pages. Compatible with Eaton/Fuller, ZF, and other transmission manufacturers. The 447 Series uses tapered bearings in place of needle bearings for greater load capacity, and no adapter plate is required for most installations. Call us to confirm proper fit for your application.
Features
6-bolt mounting, no adapter plate required for most installations
Wire/cable mechanical shift
1-1/4" round output shaft with keyway option
Shaft power: 21 HP at 500 RPM, 43 HP at 1,000 RPM
Intermittent torque: 201-300 lb-ft (verify actual rating on Chelsea application pages)
Tapered bearings for greater load capacity vs. needle-bearing designs
Compatible with Eaton/Fuller, ZF, and select other transmissions
Tech Specs
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: 1-1/4" Round; 1-1/4" Round with Key
- Transmission Compatibility: Eaton/Fuller, ZF, Other
- Output Power: 36-45 HP (31-40 kW)
- Shaft Power: 21 HP (16 kW) at 500 RPM; 43 HP (32 kW) at 1,000 RPM
- Intermittent Torque: 201-300 lb-ft (301-400 Nm), check application pages for actual torque ratings
