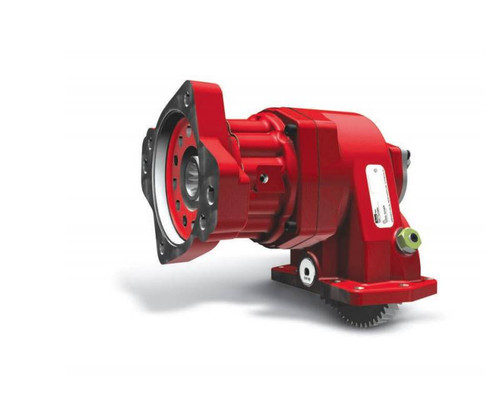

877XCFJP-M5AC Chelsea 877 Series PTO

The Chelsea 877XCFJP-M5AC or 877XCFJPM5AC is a constant-mesh power take-off from the Chelsea 877 Series, engineered for 10-bolt Allison transmission applications with a high-torque, continuous-duty workload. The output shaft is a 1-1/2" 10-tooth spline with a 1410 companion flange. Shaft power reaches 64 HP at 500 RPM and 128 HP at 1000 RPM. Continuous torque is rated up to 670 lb-ft (check application pages for actual torque ratings for your installation). The compact housing keeps clearance issues to a minimum, and the rotatable output flange gives you two arrangement options to fit tight installations. Wet Spline Technology is built in to extend both PTO and pump shaft service life. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.

Features

Constant-mesh shift type for continuous-duty applications, no engagement required
10-bolt mounting for Allison transmissions
Output: 1-1/2" 10-tooth spline with 1410 companion flange
Shaft power: 64 HP at 500 RPM, 128 HP at 1000 RPM
Continuous torque up to 670 lb-ft (verify against application pages for your specific installation)
Compact housing height with rotatable output flange and Wet Spline Technology for extended service life

Tech Specs

• Mounting Type: 10-Bolt
• Transmission Manufacturer: Allison
• Shift Type: Constant Mesh
• Output Shaft Type: 1-1/2" 10-Tooth Spline with 1410 Companion Flange
• Shaft Power: 64 HP (500 RPM), 128 HP (1000 RPM), 48 kW (500 RPM), 95 kW (1000 RPM)
• Output Power: 56+ HP, 51+ kW
• Intermittent Torque: 501+ lb-ft, 501+ Nm
• Continuous Torque: 670 lb-ft, 908 Nm (Check Application Pages for Actual Torque Ratings)

Additional Information

The Chelsea 877 Series is designed for high-torque, demanding-duty installations where the PTO must operate continuously without de-rating. Eight internal gear ratios offer a wide range of output speeds to suit virtually any pump or driveline requirement. Pressure lubrication is integrated into the PTO housing and requires only one hose for installation. Typical applications for the 877 Series include refuse trucks, aerial and fire and rescue trucks, snow and ice equipment, oil and gas, and defense vehicles. Two assembly arrangements are available to maximize installation clearance in tight chassis configurations.
Note: Parker Chelsea lists the 877 Series as obsolete. Contact Pro Gear and Transmission to confirm current availability and to identify any applicable replacement or successor part for your chassis.

Parts Manual: Chelsea 877 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
