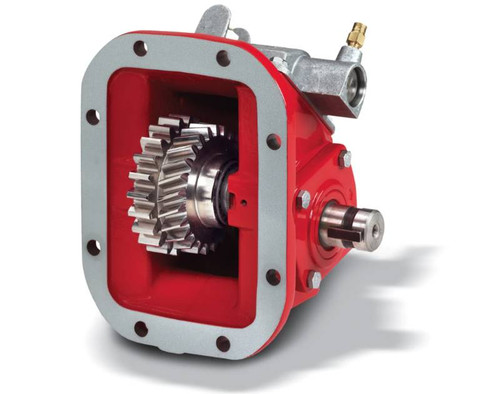

The Chelsea 680 Series Power Take-Off Assembly, part number 680ZSDAX-A5XK or 680ZSDAXA5XK, is a medium- to heavy-duty PTO designed for transmissions with 8-bolt PTO apertures. The 680 Series features a cast iron housing with tapered cone bearings on the output shaft, built to handle higher-torque demands such as pneumatic blower applications. This unit uses wire/cable mechanical shift and delivers a 1-1/4" round output shaft with keyway. Intermittent torque rating for the 680 Series is 375 lb-ft (508 Nm) -- check application pages for actual ratings for your specific configuration. Compatible with Eaton/Fuller and Volvo/Mack transmissions, and includes a deep-mount housing option suited for Mack applications. Available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
8-bolt mounting for broad manual transmission coverage including Eaton/Fuller and Volvo/Mack
Wire/cable mechanical shift type
1-1/4" round output shaft with keyway
Series intermittent torque rating: 375 lb-ft (508 Nm) -- verify actual rating for your application
Shaft power output: 36 HP (500 RPM), 71 HP (1000 RPM), 107 HP (1500 RPM)
Deep-mount housing option available for Mack transmission applications
Tech Specs
- Intermittent Torque: 375 lb-ft / 508 Nm (check application pages for actual torque ratings for your configuration)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 56+ HP / 51+ kW
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/4" Round with Key
- Mounting Type: 8-Bolt
- Shaft Power: 36 HP / 27 kW (500 RPM), 71 HP / 53 kW (1000 RPM), 107 HP / 80 kW (1500 RPM)
