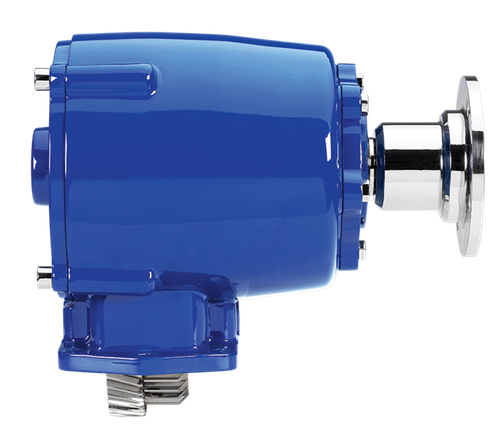

CS41-A1007-H3VX Muncie CS41 Series PTO

The Muncie CS41-A1007-H3VX or CS41A1007H3VX is a 10-bolt heavy-duty clutch shift power take-off from Muncie's CS40/41 Series, engineered for Allison 3000 and 4000 series and Caterpillar CX transmissions. It ships with two assembly arrangements, letting you mount it shaft-high or shaft-low on either side of the transmission. Direct-mount output options include S.A.E. "C" and DIN 5462 flanges to fit most high-power hydraulic pumps; a 1410-series remote-mount output shaft is also available for remote pump drive setups. Standard pressure lubrication is built in at no additional cost. Maximum output speed on fire pump applications is 4,000 RPM. Call us to confirm proper fit for your specific transmission and application.

Features

10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra-large bearings and components for extended service life under demanding loads
S.A.E. "C" and DIN 5462 direct-mount flange options with rotatable flanges for pump positioning clearance
1410-series remote-mount output shaft for remote pump drive installations
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Standard pressure lubrication included; maximum output speed of 4,000 RPM on fire pump applications

Tech Specs

•
•
•
• Series: CS41 (Clutch Shift)
• Mount: 10-Bolt Heavy Duty
• Transmission Fit: Allison 3000 Series, Allison 4000 Series, Caterpillar CX
• Direct Mount Options: S.A.E. "C" 2/4-bolt flange, DIN 5462
• Remote Mount Output: 1410 Series output shaft
• Assembly Arrangements: 2 (shaft-high or shaft-low, either side of transmission)
• Lubrication: Standard pressure lubrication
• Max Output Speed (fire pump): 4,000 RPM
• Dimensions (H x W x L): 12 in. x 13.5 in. x 13.5 in.
