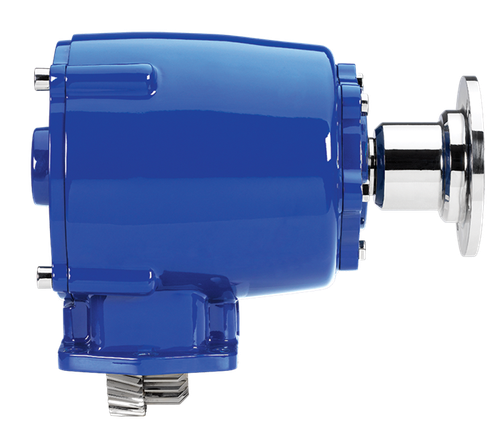

CS41-A1012-H3ZX Muncie CS41 Series PTO

The Muncie CS41-A1012-H3ZX or CS41A1012H3ZX is a 10-bolt heavy duty clutch shift power take-off from the CS41 Series, designed to deliver maximum power from Allison 3000 and 4000 series and Caterpillar CX transmissions. Precision ground gears keep operation quiet while handling high torque demands. Oversized bearings and components add durability in demanding applications. The 1410 series remote mount output shaft supports remote pump drives, while SAE "C" and DIN 5462 direct mount flanges fit most high-power-input pumps. Rotatable direct mount flanges let you position the pump for maximum clearance, and two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included. Call us to confirm proper fit for your application.

Features

10-bolt heavy duty clutch shift design
Precision ground gears for high torque capacity and quiet operation
Extra large bearings and components for durability under load
1410 series remote mount output shaft for remote pump drives
SAE "C" and DIN 5462 direct mount flange options fit most high-power-input pumps
Rotatable direct mount flanges and two assembly arrangements for flexible installation
Standard pressure lubrication included
Maximum output speed of 4000 RPM on fire pump applications

Tech Specs

•
•
•
• Series: CS41 (Clutch Shift)
• Mount: 10-Bolt Heavy Duty
• Transmission Compatibility: Allison 3000 Series, Allison 4000 Series, Caterpillar CX
• Max Output Speed: 4000 RPM (fire pump applications)
• Remote Mount Output: 1410 Series shaft
• Direct Mount Options: SAE "C" 2/4 bolt flange, DIN 5462
• Lubrication: Standard pressure lubrication
