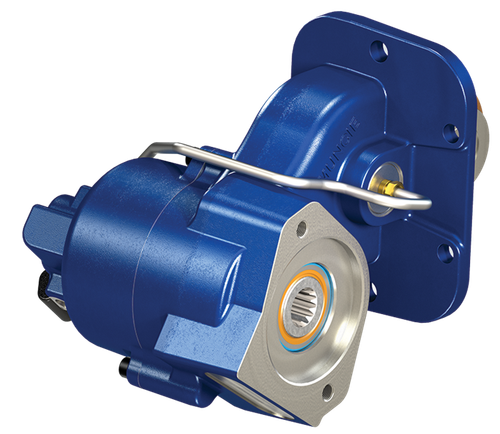

The Muncie FR3C-F1209-D3BX (also referenced as FR3CF1209D3BX) is a power takeoff unit engineered to utilize maximum torque from the Ford TorqShift transmission. It delivers 237 lb.ft. intermittent torque and 166 lb.ft. continuous torque at a speed ratio of 0.09, with an intermittent rating of 45 HP at 1,000 RPM. The one-piece housing reduces leak points compared to multi-piece designs, and the complete integrated wiring harness simplifies installation. Output is keyed shaft. The enhanced gear set supports the higher torque capacity this application demands. Call us to confirm proper fit for your application.
Features
Fits Ford TorqShift transmission, utilizing maximum available torque
Intermittent torque rating: 237 lb.ft. (321 NM)
Continuous torque rating: 166 lb.ft. (225 NM)
Intermittent power rating: 45 HP / 34 kW at 1,000 RPM
Keyed shaft output
One-piece housing with integrated wiring harness reduces leak points and simplifies installation
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 09 | 45 | 237 | 166 | (34) | (321) | (225) |
