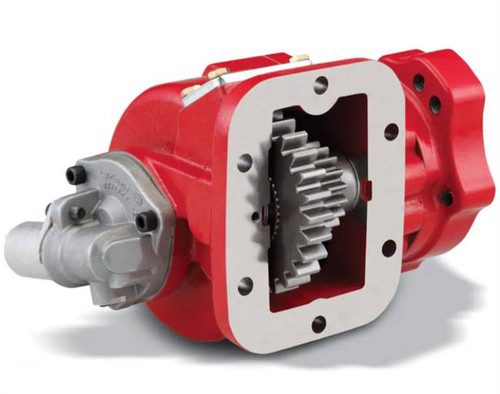

The Chelsea 442XUKXX-W3XK is a 442 Series Power Take-Off built for 6-bolt transmission applications. The cast iron housing and tapered cone bearings on the output shaft give this series a strong torque rating and extended service life. Shift is wire/cable mechanical. The 442 Series covers a wide range of light-to-medium duty vocational work, including dump trucks, tow trucks, service trucks, and aerial units. The round output shaft accepts a 1-1/4" key. Pro Gear and Transmission carries this genuine Chelsea PTO unit.
Features
Chelsea 442 Series Power Take-Off
6-bolt transmission mounting
Wire/cable mechanical shift
Cast iron housing with tapered cone bearings on the output shaft
Round output shaft with 1-1/4" key
Suited for dump trucks, tow trucks, service trucks, and aerial applications
Tech Specs
- Series: Chelsea 442
- Mounting Type: 6-Bolt
- Shift Type: Wire/Cable, Mechanical
- Output Shaft Type: Round Shaft (1-1/4" Key)
- Housing Material: Cast Iron
- Output Bearing Type: Tapered Cone
- Intermittent Torque (Series): 250 lb-ft (339 Nm) - check application pages for actual rating
- Output Power (Series): 46-55 HP / 31-40 kW
Additional Information
Parts Manual: Chelsea 442 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
