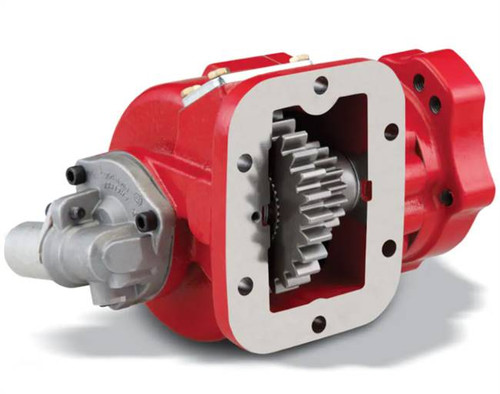

The Chelsea 442 Series Power Take-Off, part number 442KWBQX-W4RD or 442KWBQXW4RD, is a 6-bolt mount PTO built around a cast iron housing with tapered cone bearings on the output shaft. The 442 Series carries an intermittent torque rating of 201-300 lb-ft and an output power range of 46-55 HP, making it a practical choice for light-to-medium duty vocational work including dump trucks, tow trucks, service trucks, and aerial applications. The output shaft is a round shaft with a 1-1/4" key. Eleven internal speed ratios and up to 36 output configurations, including Chelsea's 360-degree rotatable flange, are available across the 442 Series. Call us to confirm proper fit for your specific transmission and application.
Features
Chelsea 442 Series Power Take-Off
6-bolt transmission mounting
Cast iron housing with tapered cone bearings on output shaft
Round output shaft with 1-1/4" key
Intermittent torque rating: 201-300 lb-ft (339 Nm)
Output power range: 46-55 HP at rated speed
Compatible with light-to-medium duty applications including dump trucks, tow trucks, and service trucks
Tech Specs
- Mounting Type: 6-Bolt
- Output Shaft Type: Round Shaft, 1-1/4" Key
- Intermittent Torque: 201-300 lb-ft (339 Nm)
- Output Power: 46-55 HP (31-40 kW)
- Shift Type: Wire/Cable, Mechanical
- Housing Material: Cast Iron
- Output Bearing: Tapered Cone Bearings
- Dimensions (H x W x L): 8 in. x 10 in. x 14 in.
