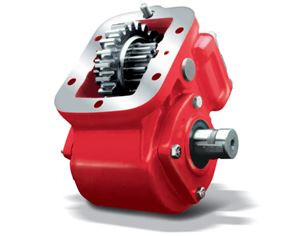

The Chelsea 221RCAJP-H5XR (also listed as 221RCAJPH5XR) is a 6-bolt mounted power take-off assembly built for low-speed, heavy-duty applications. It uses a wire/cable mechanical shift and delivers 46-55 HP (31-40 kW) of output power, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. The output shaft is a 1-1/4" round design, also available with a keyway. Greaseable pump shafts help control spline fretting and corrosion over time. Compatible transmissions include Allison, Eaton/Fuller, Hino, Volvo/Mack, and other select models. Available in a standard housing or a low-profile housing configuration. Call us to confirm proper fit for your application.
Features
6-bolt mounting for broad transmission compatibility including Allison, Eaton/Fuller, Hino, and Volvo/Mack
Wire/cable mechanical shift operation
1-1/4" round output shaft, also available with keyway
Output power range: 46-55 HP (31-40 kW); 48 HP at 1,000 RPM shaft power
Intermittent torque rating up to 250 lb-ft (339 Nm), confirm actual rating on Chelsea application pages
Greaseable pump shafts to reduce spline fretting and corrosion
Choice of standard or low-profile housing to suit tight installation envelopes
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check Chelsea application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Shaft Power: 24 HP / 18 kW at 500 RPM; 48 HP / 36 kW at 1,000 RPM
- Output Shaft Type: 1-1/4" Round; 1-1/4" Round with key
- Mounting Type: 6-Bolt
- Compatible Transmissions: Allison, Eaton/Fuller, Hino, Volvo/Mack, and select others
- Housing Options: Standard or low-profile
