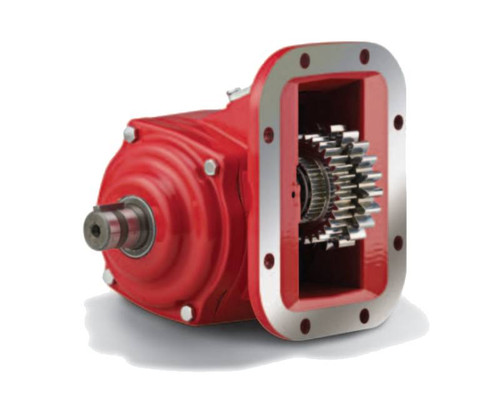

The Chelsea 221XCAHP-P5XX or 221XCAHPP5XX is a 6-bolt Power Take-Off assembly from the 221 Series, built for low-speed, heavy-duty applications such as dump trucks, tow and recovery, and aerial equipment. It uses a wire/cable mechanical shift and mounts to Allison, Eaton/Fuller, Volvo/Mack, Hino, and other compatible transmissions. The 1-1/4" round output shaft (with keyway) delivers up to 250 lb-ft intermittent torque, with shaft power rated at 24 HP at 500 RPM and 48 HP at 1,000 RPM. The cast iron housing is available in standard or low-profile configurations. Greaseable pump shafts help control spline fretting and corrosion. Call us to confirm proper fit for your application.
Features
6-bolt mounting, compatible with Allison, Eaton/Fuller, Volvo/Mack, Hino, and other transmissions
Wire/cable mechanical shift operation
1-1/4" round output shaft with keyway
Intermittent torque rating: 250 lb-ft (339 Nm); check application pages for actual torque ratings
Shaft power: 24 HP at 500 RPM, 48 HP at 1,000 RPM
Available in standard or low-profile housing; greaseable pump shafts reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (check application pages for actual torque ratings)
- Shift Type: Wire/Cable, Mechanical
- Mounting Type: 6-Bolt
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Hino, Other
- Output Shaft Type: 1-1/4" Round with Keyway
- Output Power: 46-55 HP / 31-40 kW
- Shaft Power: 24 HP (500 RPM), 48 HP (1,000 RPM) / 18 kW (500 RPM), 36 kW (1,000 RPM)
- Housing Options: Standard or Low-Profile
