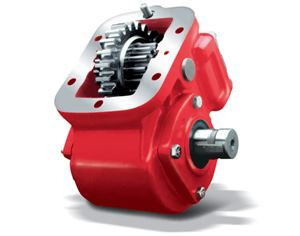

The Chelsea 221XCAHX-W3XK or 221XCAHXW3XK is a 6-bolt Power Take-Off assembly from the Chelsea 221 Series, suited for low-speed, heavy-duty vocational applications including dump trucks, aerial equipment, and tow and recovery. Shift is wire/cable mechanical. The 1-1/4" round output shaft with keyway drives auxiliary equipment at up to 48 HP (36 kW) at 1000 RPM, or 24 HP (18 kW) at 500 RPM. Intermittent torque rating for the 221 Series reaches 250 lb-ft (339 Nm) - check application pages to confirm the actual rating for this configuration. Compatible transmission families include Allison, Eaton/Fuller, Volvo/Mack, and Hino. Call us to confirm proper fit for your specific transmission and chassis.
Features
6-bolt mounting configuration for a broad range of compatible transmissions including Allison, Eaton/Fuller, Volvo/Mack, and Hino
Wire/cable mechanical shift operation
1-1/4" round output shaft with keyway
Shaft power output: 24 HP (18 kW) at 500 RPM, 48 HP (36 kW) at 1000 RPM
Available in standard or low-profile housing to maximize underbody clearance
Greaseable pump shafts help reduce spline fretting and corrosion
Tech Specs
- Intermittent Torque: 250 lb-ft / 339 Nm (Check Application Pages for Actual Torque Ratings)
- Shift Type: Wire/Cable, Mechanical
- Output Power: 46-55 HP / 31-40 kW
- Output Shaft Type: 1-1/4" Round with Key
- Transmission Manufacturer Compatibility: Hino, Allison, Eaton/Fuller, Volvo/Mack, Other
- Mounting Type: 6-Bolt
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1000 RPM
