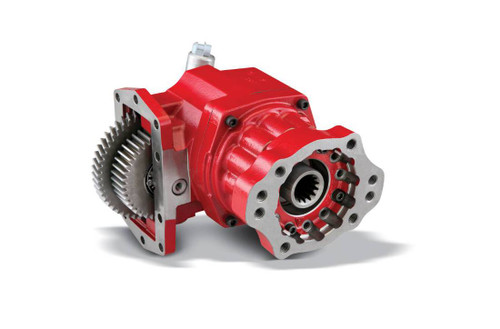

281GBFJP-E8XV Chelsea PTO Assembly

The Chelsea 281 Series Power Take-Off, part number 281GBFJP-E8XV or 281GBFJPE8XV, is a hydraulically shifted hot-shift PTO engineered for automatic transmissions with a 10-bolt aperture, including Allison and Caterpillar transmissions. An evolution of the widely used 280 Series, the 281 brings a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap to improve clamp load, and an 80% thicker clutch-pack steel disc for resistance to premature tooth wear. Nine speed ratios cover both low and high-speed applications. The rotatable cast-iron pump flanges reduce interference issues, and the optional wet spline lubrication delivers 7 to 10 times greater shaft life. SmartStart reduces shock load at engagement, and Electronic Overspeed Control (EOC) protects downstream equipment. Call us to confirm proper fit for your application.

Features

Hydraulic hot-shift (PowerShift) operation for 10-bolt automatic transmissions, including Allison and Caterpillar
Ductile iron bearing cap - 117% stronger than gray iron predecessor
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
O-ring sealing configuration between housing and bearing cap for improved clamp load and vibration resistance
Nine speed ratios including low and high-speed ranges
Rotatable cast-iron flanges reduce pump clearance interference; Positive Stop eliminates oil seal damage on driveline outputs
Optional wet spline lubrication provides 7 to 10 times greater shaft life; SmartStart reduces shock load at engagement; EOC protects driven equipment

Tech Specs

• Mounting Type: 10-Bolt
• Shift Type: Hydraulic (PowerShift / Hot Shift)
• Continuous Operation: Yes
• Transmission Compatibility: Allison and Caterpillar automatic transmissions (10-bolt aperture)
• Series Continuous Torque: 390 lb-ft (529 Nm) - check application pages for actual torque rating
• Series Intermittent Torque Range: 301 to 400 lb-ft (501+ Nm)
• Series Output Power: 56+ HP (51+ kW)
• Shaft Power: 37 HP at 500 RPM / 74 HP at 1000 RPM (28 kW at 500 RPM / 55 kW at 1000 RPM)
• Lubricant Options: Pressure Lube (P), Wet Spline (W)
• Speed Ratios: Nine (including low and high speeds)
• Output Types Available in Series: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
• Output Shaft Types Available in Series: SmartStart Round Shaft (1-1/4 in. with 5/16 in. key), 3/4 in. 11T Pump Spline, SAE B (7/8 in. 13T) Pump Spline, SAE C (1-1/4 in. 14T) Pump Spline, DIN 5462 Pump Spline, 1410 Companion Flange, DIN 120 Flange, DIN 100 Flange
• Markets: Fire and Rescue, Truck Cranes, Pumper Cleaner, Refuse

Additional Information

Reference Documents: 281/288 Series Parts List (HY25-2281-M1/US); 267/281/288/871/878 Series Owner's Manual; 281 Series Sales Literature; Chelsea PTO Stud Kits (HY25-2002-M1_US).

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
