Chelsea PTO Assembly P/N: 281GSFJP-D5RS or 281GSFJPD5RS

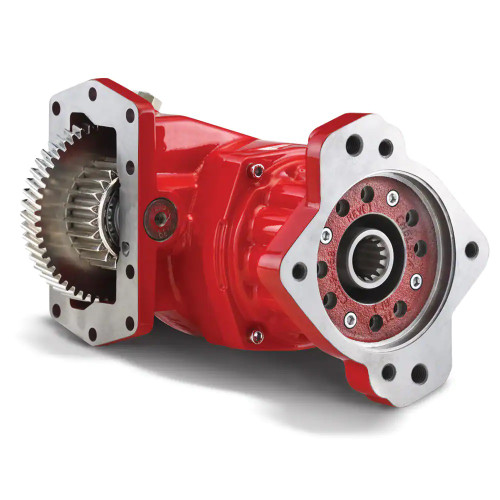

281GSFJP-D5RS Chelsea PTO Assembly

Chelsea

Listing Price: $4,335.01
Sale Price: $3,173.21

This item qualifies for FREE shipping on orders over $295 and under 70 lbs

(No reviews yet) Write a Review
Product Code:
CHL281GSFJPD5RS
Condition:
New
Availability:
Usually Ships in 3 to 5 Business Days
Adding to cart… The item has been added
The Chelsea 281 Series Power Take-Off, part number 281GSFJP-D5RS or 281GSFJPD5RS, is a hydraulically shifted hot-shift PTO built for automatic transmissions with a 10-bolt aperture, commonly used on Allison transmissions. Evolved from the top-selling 280 Series, the 281 incorporates a ductile iron bearing cap rated 117% stronger than gray iron, an o-ring sealing configuration between the housing and bearing cap for improved clamp load, and an 80% thicker steel clutch pack to resist premature tooth wear. Nine speed ratios cover both low and high-speed applications. Wet Spline Lubrication delivers 7 to 10 times greater shaft life compared to dry configurations. Electronic Overspeed Control (EOC) protects driven equipment, and SmartStart reduces shock load at engagement. Common markets include fire and rescue, refuse, truck cranes, and pumper/cleaner equipment. Call us to confirm proper fit for your transmission and application.

Features

Hydraulic PowerShift (hot-shift) operation for 10-bolt automatic transmission apertures, commonly Allison
Ductile iron bearing cap, 117% stronger than gray iron predecessor
O-ring sealing configuration between housing and bearing cap reduces vibration effects and improves clamp load
Enhanced clutch pack with 80% thicker steel discs to resist premature tooth wear
Nine speed ratios including low and high speeds
Wet Spline Lubrication option provides 7 to 10 times greater shaft life
SmartStart reduces shock load at start-up; Electronic Overspeed Control (EOC) protects driven equipment
Rotatable cast iron flanges reduce pump clearance interference; Positive Stop for driveline outputs eliminates oil seal damage

Tech Specs

  • Mounting Type: 10-Bolt aperture
  • Shift Type: Hydraulic PowerShift (hot-shift)
  • Compatible Transmission Manufacturer: Allison
  • Continuous Operation: Yes
  • Speed Ratios: Nine, including low and high speeds
  • Lubricant System: Pressure Lube (P) or Wet Spline (W) option
  • Output Types: SAE B Pump Flange, SAE C Pump Flange, ISO 7652 Pump Flange, Driveline
  • Electronic Overspeed Control (EOC): Included

Additional Information

Chelsea PTO 281 Series model break down

Parts Manual: Chelsea 281 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.

!
