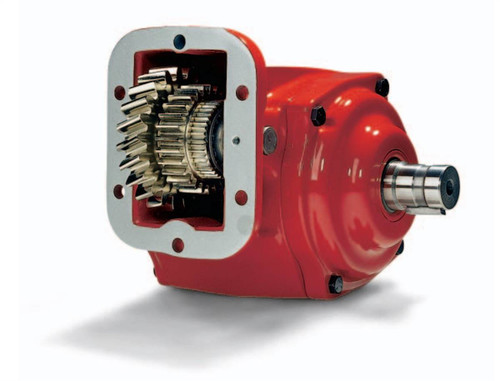

The Chelsea 282 Series PTO Assembly, part number 282XCDAX-P5BD or 282XCDAXP5BD, is a medium-duty hot-shift power take-off designed for demanding vocational applications. It mounts via an 8-bolt pattern and fits transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers. Shift is pneumatic or PowerShift (pneumatic/hydraulic). The 1-1/4" round output shaft accepts a 5/16" key. The 282 Series carries a continuous-duty torque rating up to 300 lb-ft (407 Nm) and an intermittent torque rating in the 201-300 lb-ft (401-500 Nm) range. Shaft power output reaches 57 HP (43 kW) at 1,000 RPM. Common applications include aerial, towing and recovery, construction equipment, water trucks, and home fuel oil delivery. Call us to confirm proper fit for your specific transmission and application.
Features
8-bolt mounting, compatible with Allison, Eaton/Fuller, Volvo/Mack, and other transmission manufacturers
Pneumatic or PowerShift (pneumatic/hydraulic) shift with integral air valve
1-1/4" round output shaft with 5/16" key
Continuous-duty torque rating up to 300 lb-ft (407 Nm); intermittent torque 201-300 lb-ft (401-500 Nm)
Smart Start option supports high-torque engagement; wet-spline option available for extended PTO and pump shaft life
Rotatable flanges allow output orientation adjustments at installation
Tech Specs
- Intermittent Torque: 201-300 lb-ft (401-500 Nm)
- Continuous Torque: Up to 300 lb-ft (407 Nm) - Check application pages for actual torque ratings
- Output Shaft Type: 1-1/4" Round with 5/16" Key
- Mounting Type: 8-Bolt
- Shift Type: Pneumatic or PowerShift (Pneumatic/Hydraulic)
- Transmission Compatibility: Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers
- Output Power: 56+ HP (41-50 kW)
- Shaft Power: 29 HP (21 kW) at 500 RPM; 57 HP (43 kW) at 1,000 RPM
Additional Information
Parts Manual: Chelsea 282 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
