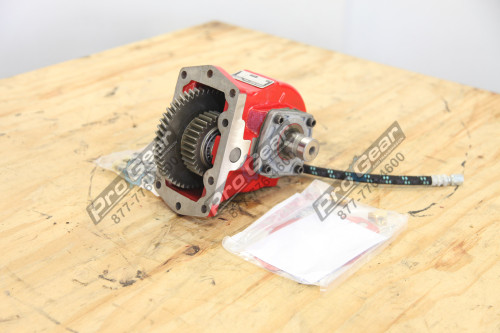

The Chelsea 442 Series Power Take-Off, part number 442GBHVX-M5XD or 442GBHVXM5XD, is a 6-bolt mount PTO built for light-to-medium duty vocational truck applications including dump trucks, tow trucks, and service trucks. This unit runs an air shift mechanism, a 0.391:1 gear ratio, and a 1-1/4" round standard output shaft. Mounting uses standard 6-bolt geometry with metric studs. The cast iron housing and tapered cone output shaft bearings contribute to the 442 Series' torque rating and service life. The output flange is rotatable for installation clearance, and the output shaft is greaseable for ongoing maintenance. The 442 Series delivers up to 48 HP at 1,000 RPM in shaft power. Call us to confirm proper fit for your application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone output shaft bearings
Rotatable output flange and greaseable output shaft for serviceability
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Shift Type: Air Shift
- Output Shaft: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
