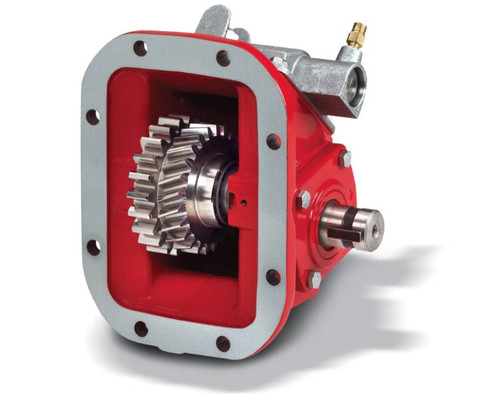

The Chelsea 442 Series Power Take-Off Assembly, part number 442XFAHX-V3GB or 442XFAHXV3GB, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit carries a 0.391:1 gear ratio and engages via air shift, making it suitable for installations where a cab-controlled pneumatic shift is required. The 1-1/4" round standard output shaft is greaseable for extended service life. Mounting uses the standard configuration with metric studs. The cast iron housing and tapered cone bearings on the output shaft are characteristic of the 442 Series platform. No pressure lube is required for this assembly. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift engagement for cab-controlled pneumatic operation
0.391:1 gear ratio
1-1/4" round standard output shaft, greaseable for extended service life
Cast iron housing with tapered cone bearings on output shaft
Low-profile shift cover with rotatable output flange for improved installation clearance
Tech Specs
- Product Series: 442
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Input Gear Designator: AH
- Assembly: 3
- Lubricant: No Pressure Lube
