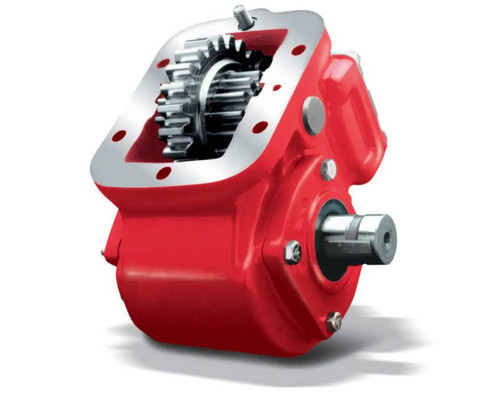

The Chelsea 442 Series Power Take-Off, part number 442XQITX-W3XJ or 442XQITXW3XJ, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit runs an air shift actuation and a 0.391:1 gear ratio, with a 1-1/4" round standard output shaft. Mounting uses standard metric studs. The assembly carries no pressure lube requirement, relying on splash lubrication. The cast iron housing and tapered cone bearings on the output shaft contribute to the 442 Series' torque capacity and service life. The 360-degree rotatable output flange adds clearance flexibility during installation. Call us to confirm proper fit for your transmission application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift actuation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on output shaft
360-degree rotatable output flange for installation clearance flexibility
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Shift Type: Air Shift
- Mounting Option: Standard Mount with Metric Studs (6-Bolt)
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
