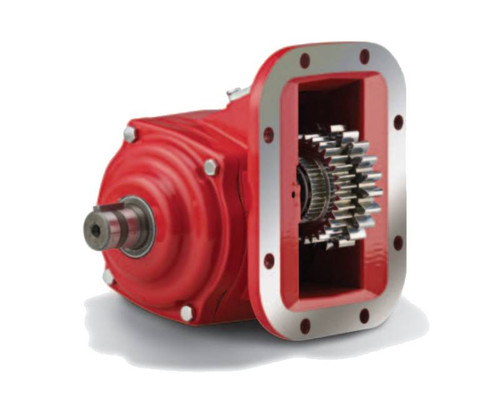

The Chelsea 442 Series Power Take-Off, part number 442XWAXX-V6XD or 442XWAXXV6XD, is a 6-bolt mount PTO built for light-to-medium duty vocational applications including dump trucks, tow trucks, and service trucks. This unit carries a 0.391:1 gear ratio with air shift activation, a standard mount with metric studs, and a 1-1/4" round standard output shaft. The cast iron housing pairs with tapered cone bearings on the output shaft for durability under sustained load. No-pressure-lube (dry sump) lubrication is specified for this configuration. The 360-degree rotatable output flange and greaseable output shaft are practical features for installations where clearance and access vary. Call us to confirm proper fit for your application.
Features
Chelsea 442 Series, 6-bolt transmission mount with metric studs
Air shift activation
0.391:1 gear ratio
1-1/4" round standard output shaft
Cast iron housing with tapered cone bearings on the output shaft
Greaseable output shaft; no-pressure (dry sump) lubrication configuration
Tech Specs
- Product Series: 442
- Input Gear Designator: AH
- Gear Ratio: 0.391:1
- Mounting Option: Standard Mount with Metric Studs
- Shift Type: Air Shift
- Output Option: 1-1/4" Round Standard Shaft
- Assembly: 3
- Lubricant: No Pressure Lube
