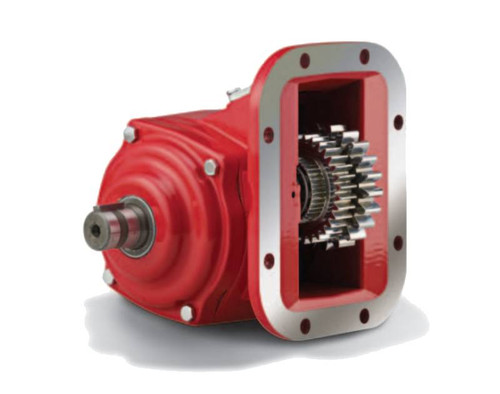

The Chelsea 489 Series Power Take-Off 489GHAHX-P5XK or 489GHAHXP5XK is a wire/cable mechanical-shift PTO built on an 8-bolt mounting configuration. The one-piece cast iron housing bolts directly to the 8-bolt transmission opening on Eaton/Fuller, Volvo/Mack, and other compatible manual transmissions, eliminating the adapter plate and reducing potential leak paths. Intermittent torque rating for the 489 Series is 250 lb-ft (339 Nm); check application pages for torque ratings specific to your installation. Output is rated at 46-55 HP (31-40 kW), with shaft power of 24 HP at 500 RPM and 48 HP at 1,000 RPM. The 1-1/4" round output shaft accepts a key. Strong tapered bearings replace the needle bearings used on some comparable units. Internal parts share commonality with the Chelsea 442 Series, simplifying service. Call us to confirm proper fit for your transmission application.
Features
8-bolt one-piece cast iron housing mounts directly to the transmission opening without an adapter plate
Wire/cable mechanical shift; Electric over Air shift option available within the 489 Series
250 lb-ft (339 Nm) intermittent torque rating; continuous torque de-rated 30% per application pages
Output shaft: 1-1/4" round with keyway; greaseable output options available
Tagered bearings for greater load capacity compared to needle-bearing designs
Kit-style construction and internal parts shared with the Chelsea 442 Series simplify field service
Tech Specs
- Intermittent Torque: 250 lb-ft (339 Nm) - Check Application Pages for Actual Torque Ratings
- Continuous Torque: De-rate intermittent rating 30% - Check Application Pages for Actual Torque Ratings
- Shift Type: Wire/Cable Mechanical
- Output Power: 46-55 HP (31-40 kW)
- Shaft Power: 24 HP (18 kW) at 500 RPM; 48 HP (36 kW) at 1,000 RPM
- Mounting Type: 8-Bolt
- Output Shaft Type: 1-1/4" Round with Key
- Lubricant: X = No Pressure Lube; P = Pressure Lube
- Transmission Compatibility: Eaton/Fuller, Volvo/Mack, and other manual transmissions with 8-bolt PTO aperture
- Product Series: 489
