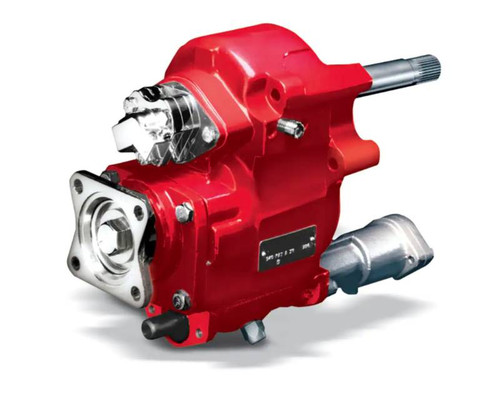

The Chelsea 541 Series Power Take-Off Assembly, part number 541-MBJ-Y-XV or 541MBJYXV, mounts on the rear countershaft of Eaton Fuller transmissions, including the Advantage and UltraShift Series. This unit uses Chelsea's Thrushaft® mounting design, requiring only three fasteners and no backlash adjustment, which significantly reduces installation time. Shift type is lever/mechanical, and the output shaft is a 1-1/2"-10T spline with a 1410 series companion flange, suited for driveline installations. Intermittent torque capacity reaches 400 lb-ft (542 Nm); verify actual ratings on the application pages for your specific transmission. Output shaft power is rated at 76 HP at 1000 RPM. The rear-mount design creates additional clearance under the vehicle for pumps or other driven equipment. Call us to confirm proper fit for your application.
Features
Mounts on rear countershaft of Eaton Fuller transmissions including Advantage and UltraShift Series
Thrushaft® design installs with three fasteners and requires no backlash adjustment
Lever and mechanical shift type
Output: 1-1/2"-10T spline with 1410 series companion flange
Intermittent torque up to 400 lb-ft (542 Nm); check application pages for confirmed rating
Rear-mount design provides additional clearance for direct-mount pumps or driveline equipment
Tech Specs
- Transmission Manufacturer: Eaton/Fuller
- Intermittent Torque: 301-400 lb-ft (501+ Nm); 400 lb-ft / 542 Nm (check application pages for actual torque ratings)
- Output Power: 56+ HP, 51+ kW
- Output Shaft Type: 1-1/2"-10T Spline with 1410 Series Companion Flange
- Shift Type: Lever, Mechanical
- Mounting Type: Rear Mount
- Shaft Power: 38 HP / 28 kW at 500 RPM; 76 HP / 57 kW at 1000 RPM
