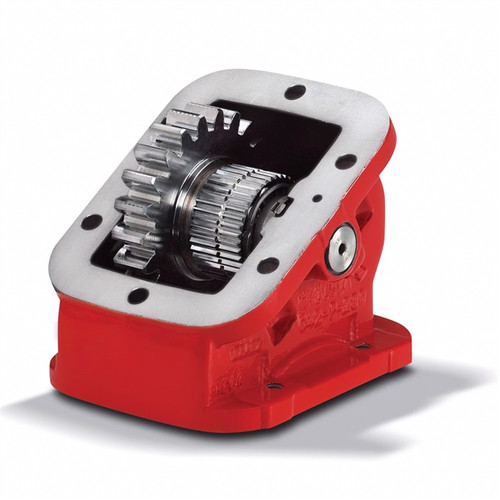

The Chelsea PTO Assembly 645XAHX-4XX or 645XAHX4XX is a geared PTO adapter designed to mount a 6-bolt PTO to a 6-bolt transmission opening. Its defining feature is a 45-degree downward angular offset, which repositions the PTO output to clear frame rails, exhaust components, or other chassis obstructions that would prevent a direct-mount installation. The assembly uses the same input gears as the Chelsea 442 Series, making it a familiar fit for shops already working with that platform. Overall dimensions are 7.75 in. height by 10.75 in. width by 10.75 in. length. Call us to confirm proper fit for your chassis and transmission combination.
Features
6-bolt PTO to 6-bolt transmission opening
45-degree downward angular offset reduces interference with chassis components
Uses the same input gears as the Chelsea 442 Series
Geared adapter design for positive power transfer
Overall dimensions: 7.75 in. H x 10.75 in. W x 10.75 in. L
Cross-referenced as 1450-645XAHX4XX or 1450645XAHX4XX
Tech Specs
- Mounting: 6-bolt PTO to 6-bolt transmission opening
- Offset angle: 45 degrees downward
- Input gear compatibility: Chelsea 442 Series input gears
- Overall height: 7.75 in.
- Overall width: 10.75 in.
- Overall length: 10.75 in.
- Cross references: 1450-645XAHX4XX, 1450645XAHX4XX, CHL645XAHX4XX
