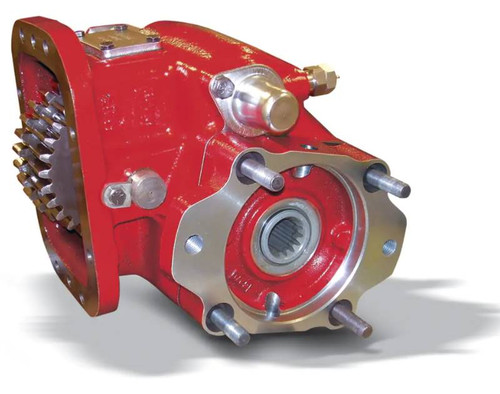

The Chelsea 823 Series Power Take-Off Assembly, part number 823XJAHX-M5XV or 823XJAHXM5XV, is an extra heavy-duty PTO built for high-torque applications including oil field service, logging, pumper-cleaner trucks, and mining equipment. It mounts via an 8-bolt aperture and fits automatic and manual transmissions from Allison, Eaton/Fuller, Volvo/Mack, and other manufacturers. The mechanical lever shift operates with an intermittent torque rating up to 500 lb-ft (678 Nm) - check application pages for confirmed torque values for your specific installation. Output is delivered through a 1-1/2 inch 10-spline shaft with a 1410 Series companion flange. Shaft power runs 48 HP at 500 RPM and 95 HP at 1000 RPM. Call us to confirm proper fit for your transmission and application.
Features
Chelsea 823 Series extra heavy-duty PTO, the highest torque rating in the series lineup
8-bolt mounting fits automatic and manual transmissions from Allison, Eaton/Fuller, Volvo/Mack, and others
Mechanical lever shift; air shift also available in the 823 Series family
1-1/2 inch - 10T spline output shaft with 1410 Series companion flange
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Direct-mount pump output capability; cast iron housing with tapered cone bearings on the output shaft
Tech Specs
- Intermittent Torque: 500 lb-ft / 678 Nm (check application pages for actual torque ratings for your specific unit)
- Shift Type: Lever, Mechanical
- Output Power: 56+ HP / 51+ kW
- Transmission Manufacturer Compatibility: Allison, Eaton/Fuller, Volvo/Mack, Other
- Output Shaft Type: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- Mounting Type: 8-Bolt
- Shaft Power: 48 HP (500 RPM) / 95 HP (1000 RPM) | 36 kW (500 RPM) / 71 kW (1000 RPM)
