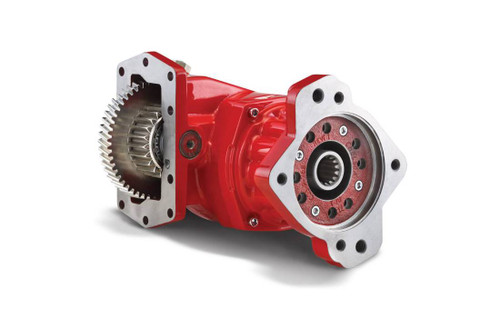

Chelsea PTO P/N: 870XCFJP-K3RS or 870XCFJPK3RS, ready to ship worldwide! Call us with any questions.
Features
Compact housing height reduces clearance issues
Integral actuation valve simplifies plumbing and reduces installation time
Wet Spline Technology to extend PTO & pump shaft life
Electronic Overspeed Control (EOC) protects driven equipment
Tech Specs
- INTERMITTENT TORQUE:: 501+ lb-ft 501+ Nm
- MOUNTING TYPE: 10-Bolt
- OUTPUT SHAFT TYPE: 1410 Companion Flange 1-1/2" - 10T Spline w/ 1410 Flange
- SHIFT TYPE: Hydraulic PowerShift (Hydraulic)
- OUTPUT POWER: 56+ HP 51+ kW
- TRANSMISSION MANUFACTURER: Allison Other
- SHAFT POWER: 500 RPM: 64, 1000 RPM: 128 HP 500 RPM: 48, 1000 RPM: 95 kW
- WEIGHT: 56 lb 25 kg< /li>
- CONTINUOUS TORQUE: 908 (Check Application Pages for Actual Torque Ratings) Nm 670 (Check Application Pages for Actual Torque Ratings) lb-ft
Additional Information
Parts Manual: Chelsea 870 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
