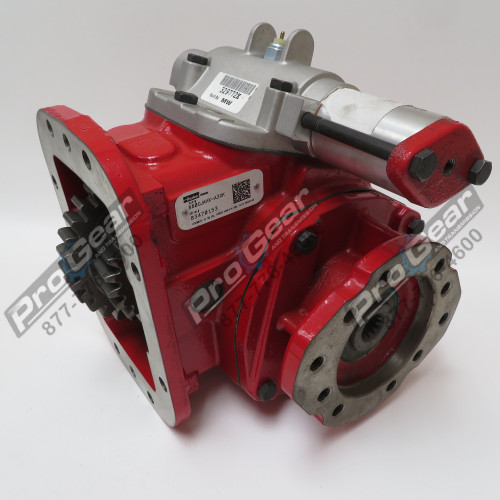

The Chelsea 880GJAHX-A3AZ or 880GJAHXA3AZ is a heavy-duty 8-bolt Power Take-Off from the Chelsea 880 Series, engineered for high-torque, constant-mesh input applications. Shift type is lever mechanical. The output shaft is a 1-1/2"-10T spline with a 1410 Companion Flange. Intermittent torque rating for the 880 Series reaches 500 lb-ft (678 Nm); check application pages for the rating specific to this configuration. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1,000 RPM. Compatible transmissions include Volvo/Mack, Allison, and Eaton/Fuller applications, among others. The cast iron housing features a removable shift cover that simplifies backlash adjustment during installation. Dual-pump output allows mounting a hydraulic pump on each end. Typical applications include fire trucks, bulk haulers, oil field equipment, aerial units, and large recovery trucks. Call us to confirm proper fit for your specific transmission.
Features
8-Bolt mounting for most manual transmissions, including Volvo/Mack, Allison, and Eaton/Fuller applications
Lever mechanical shift with constant mesh input gears for high- and low-speed, high-torque operation
1-1/2"-10T spline output shaft with 1410 Series Companion Flange
Intermittent torque capacity: 500 lb-ft (678 Nm) - verify actual rating on application pages
Shaft power: 48 HP at 500 RPM, 95 HP at 1,000 RPM
Dual-pump output allows a hydraulic pump to be mounted on each end of the PTO
Removable shift cover simplifies backlash adjustment at installation
Rugged cast iron housing
Tech Specs
- INTERMITTENT TORQUE: 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- SHIFT TYPE: Lever Mechanical
- MOUNTING TYPE: 8-Bolt
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- OUTPUT POWER: 56+ HP / 51+ kW
- SHAFT POWER: 48 HP at 500 RPM; 95 HP at 1,000 RPM (36 kW at 500 RPM; 71 kW at 1,000 RPM)
- TRANSMISSION COMPATIBILITY: Volvo/Mack, Allison, Eaton/Fuller, and Other
