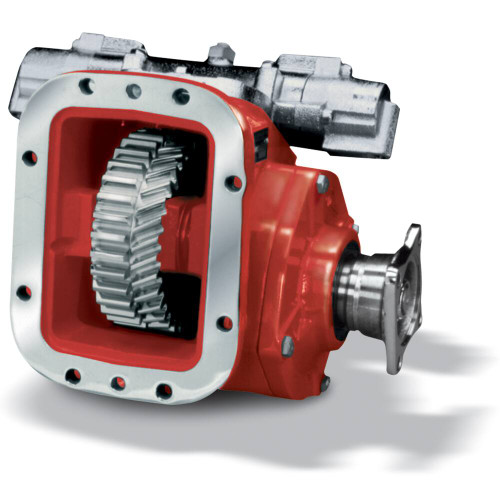

The Chelsea 880XQAHX-A3XY or 880XQAHXA3XY is an 880 Series 8-bolt power take-off assembly built for heavy-duty, high-torque applications. It uses a lever mechanical shift and delivers output through a 1-1/2"-10T spline shaft with a 1410 companion flange. Shaft power is rated at 48 HP at 500 RPM and 95 HP at 1000 RPM. Intermittent torque is rated up to 500 lb-ft (check application pages for actual torque ratings for your specific installation). The dual-pump output design allows a hydraulic pump to be mounted on each end of the PTO. Compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions, among others. Call us to confirm proper fit for your application.
Features
8-bolt mounting compatible with Volvo/Mack, Allison, and Eaton/Fuller transmissions
Lever mechanical shift with removable shift cover for straightforward backlash adjustment
1-1/2"-10T spline output shaft with 1410 companion flange
Dual-pump output allows mounting a hydraulic pump on each end of the PTO
Shaft power: 48 HP at 500 RPM, 95 HP at 1000 RPM
Rugged cast iron housing suited for bulk hauler, fire truck, oil field, and large truck recovery applications
Tech Specs
- INTERMITTENT TORQUE: 401-500 lb-ft / 501+ Nm; 500 lb-ft / 678 Nm (Check Application Pages for Actual Torque Ratings)
- TRANSMISSION MANUFACTURER: Volvo/Mack, Allison, Eaton/Fuller, Other
- SHIFT TYPE: Lever Mechanical
- OUTPUT POWER: 56+ HP / 51+ kW
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Companion Flange
- MOUNTING TYPE: 8-Bolt
- SHAFT POWER: 48 HP at 500 RPM / 95 HP at 1000 RPM (36 kW at 500 RPM / 71 kW at 1000 RPM)
