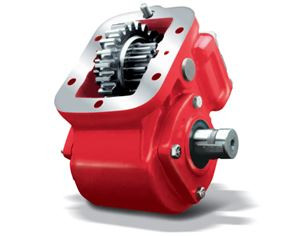

The Chelsea 880 Series Power Take-Off Assembly, part number 880XQAHX-A6XY or 880XQAHXA6XY, is an 8-bolt, lever mechanical shift PTO built for high-torque, heavy-duty service. The output shaft is a 1-1/2"-10T spline paired with a 1410 Series Companion Flange, rated for up to 500 lb-ft intermittent torque. Shaft power output reaches 48 HP at 500 RPM and 95 HP at 1,000 RPM. A cast iron housing holds up in demanding environments, and the removable shift cover makes backlash adjustment straightforward during installation. The dual-pump output configuration allows a hydraulic pump to be mounted on each end of the unit. Compatible with a wide range of transmissions including Volvo/Mack, Allison, and Eaton/Fuller. Typical applications include bulk haulers, fire trucks, oil field equipment, aerial units, and large recovery trucks. Call us to confirm proper fit for your specific transmission and application.
Features
8-Bolt mounting pattern fits most manual transmissions with an 8-bolt aperture
Lever mechanical shift with optional air control shift availability
1-1/2"-10T spline output with 1410 Series Companion Flange
Intermittent torque rating up to 500 lb-ft; shaft power 48 HP at 500 RPM, 95 HP at 1,000 RPM
Cast iron housing with removable shift cover for simplified backlash adjustment
Dual-pump output allows a hydraulic pump on each end of the PTO
Tech Specs
- INTERMITTENT TORQUE: 401-500 lb-ft (501+ Nm); 500 lb-ft / 678 Nm (check application pages for actual torque ratings)
- TRANSMISSION COMPATIBILITY: Volvo/Mack, Allison, Eaton/Fuller, and other manufacturers
- SHIFT TYPE: Lever Mechanical
- OUTPUT SHAFT TYPE: 1-1/2" - 10T Spline with 1410 Series Companion Flange
- MOUNTING TYPE: 8-Bolt
- OUTPUT POWER: 56+ HP (51+ kW)
- SHAFT POWER: 48 HP (36 kW) at 500 RPM; 95 HP (71 kW) at 1,000 RPM
Additional Information
Parts Manual: Chelsea 880 Series PTO Parts Manual (PDF) — exploded views, item numbers and the full parts breakdown for this series.
