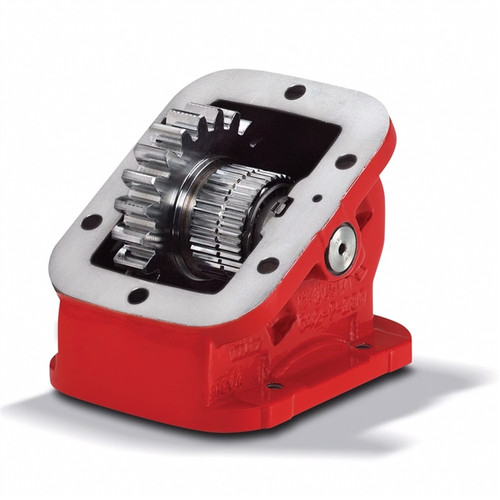

The Chelsea 630GAHX-3XX or 630GAHX3XX is a 630 Series geared adapter designed to mount a 6-bolt PTO to a 6-bolt transmission opening at a 30-degree angle. That angular offset is the defining function: it repositions the PTO output to clear mounting obstacles and eliminate interference problems that a straight-mount configuration cannot solve. The adapter shares the same input gears used in the Chelsea 442 Series, making it a familiar fit for shops already working with that platform. Also cross-referenced as 1450-630GAHX3XX, CHL630GAHX3XX, and WA20-26-0003. A genuine Chelsea part sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
6-bolt PTO to 6-bolt transmission opening
Mounts at a 30-degree angle to eliminate interference and clear mounting obstacles
Changes PTO output shaft rotation when required
Uses the same input gears as the Chelsea 442 Series
Cross-references: 1450-630GAHX3XX, CHL630GAHX3XX, WA20-26-0003
Tech Specs
- Mounting Configuration: 6-bolt PTO to 6-bolt transmission opening
- Mount Angle: 30 degrees
- Input Gear Compatibility: Same as Chelsea 442 Series
- Dimensions (H x W x L): 7.75 in. x 10.75 in. x 10.75 in.
- Cross References: 1450-630GAHX3XX, 1450630GAHX3XX, CHL630GAHX3XX, WA20-26-0003, WA20260003
