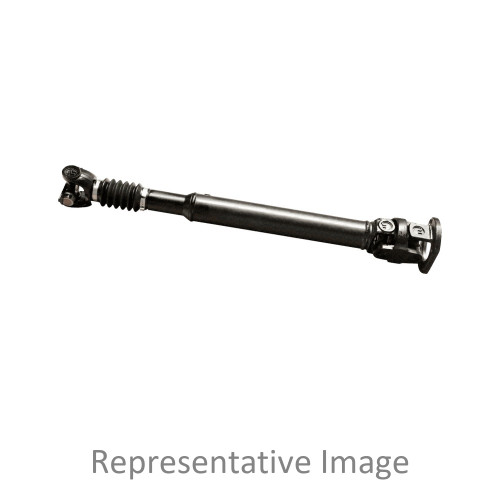

The Dana Spicer SPL250 series drive shaft, part number 250DS55003F-910M or 250DS55003F910M, is a steel-tube driveline assembly built around the SPL U-joint style. The tube measures 5.12 inches in diameter with a 0.197-inch wall thickness and a tube length of 35.83 inches (910 mm). Center-line to center-line yoke distance runs 50.83 inches collapsed and 52.99 inches installed. Maximum slip travel is 4.33 inches and mid-slip is 2.17 inches. The shaft includes two SPL-style universal joints, is phased at 0 degrees, and is rated for a 25-degree joint angle. CV joints are not included. Call us to confirm proper fit for your application.
Features
SPL250 series driveline with SPL-style U-joint ends
Steel tube: 5.12 in. diameter x 0.197 in. wall thickness (130 mm x 5 mm)
Tube length: 35.83 in. (910 mm)
Center-line yoke span: 50.83 in. collapsed / 52.99 in. installed
Maximum slip: 4.33 in. (110 mm); mid-slip: 2.17 in. (55 mm)
Two SPL universal joints included; phased 0 degrees; 25-degree joint angle rating
Tech Specs
- Series: SPL250
- Shaft Material: Steel
- Tube Size: 5.12 in. x 0.197 in. wall (130 mm x 5 mm)
- Tube Length: 35.83 in. (910 mm)
- CL Yoke to CL Yoke - Collapsed: 50.83 in. (1291 mm)
- CL Yoke to CL Yoke - Installed: 52.99 in. (1346 mm)
- Max Slip: 4.33 in. (110 mm)
- Mid Slip: 2.17 in. (55 mm)
- Joint Angle: 25 degrees
- U-Joint Style: SPL
- Universal Joints Included: Yes (2)
- CV Joints Included: No
- Phased: No (0 degrees)
- Slip Assembly: No
- Assembly: Welded
