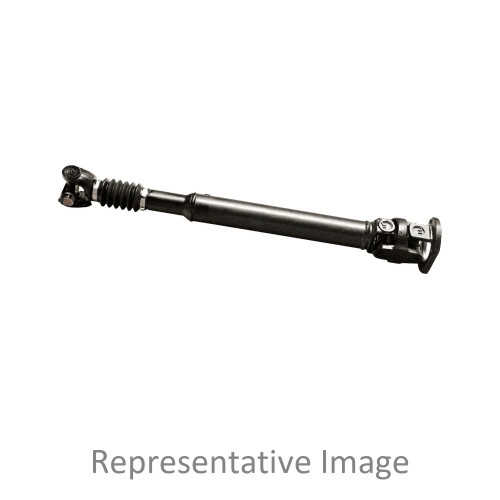

Genuine Dana Spicer Driveshaft 250D P/N: 250Ds52006C-1000Mr or 250Ds52006C1000Mr, Genuine parts, direct from Dana Spicer. Best in the market! Grab yours now! Trust in Dana's genuine parts, delivered to your doorstep worldwide. Experts ready to guide!
Tech Specs
- Series SPL250
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 130.0 x 5.00
- Max Slip (MM) 110.0000
- Tube Size (IN) 5.12 x .197
- Max Slip (IN) 4.3307
- Tube Length (MM) 1000.0000
- Mid Slip (MM) 55.0000
- Tube Length (IN) 39.3701
- Mid Slip (IN) 2.1654
- CL Yoke To CL Yoke (MM)-COLL 1381.0000
- CL Yoke To CL Yoke (IN)-COLL 54.3701
- VMRS 024000000
- Phase (Yes/No) No
- Phased - Degrees 0
- Joint Angle 25
- CL Yoke To Flange Face (MM)-COLL 1472.0000
- CL Yoke To Flange Face(IN)-COLL 57.9528
- End 2 TJ Side 250-2-15
- CL Yoke To Flange Face (MM)-INST 1527.0000
- Unwelded/Welded Assembly Welded
- CL Yoke To Flange Face (IN)-INST 60.1181
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- U-Joint Style SPL
- CL Yoke To CL Yoke (MM)-INST 1436.0000
- CL Yoke To CL Yoke (IN)-INST 56.5354
