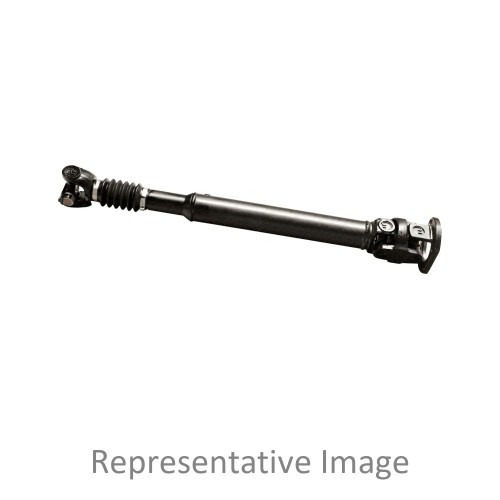

Genuine Dana Spicer Driveshaft 250D P/N: 250Ds85001F-1550Mr or 250Ds85001F1550Mr, Genuine parts, premium service! Get the parts you need for your next repair. Worldwide shipping, Dana's genuine quality, and experts by your side!
Tech Specs
- Series SPL250 lite
- Shaft Material Steel
- Invoice Drive Shaft
- Tube Size (MM) 118.6 x 5.20
- Max Slip (MM) 110.0000
- Tube Size (IN) 4.67 x .205
- Max Slip (IN) 4.3307
- Tube Length (MM) 1550.0000
- Tube Length (IN) 61.0236
- CL Yoke To CL Yoke (MM)-COLL 1758.0000
- CL Yoke To CL Yoke (IN)-COLL 69.2126
- VMRS 024000000
- Phase (Yes/No) No
- Phased - Degrees 0
- CL Yoke To End Of Yoke Shaft (MM)-COLL 2106.0000
- CL Yoke To End Of Yoke Shaft (IN)-COLL 82.9134
- Joint Angle 25
- Unwelded/Welded Assembly Welded
- Universal Joints Included Yes
- No. of Universal Joint Included 2
- U-Joint Style SPL
