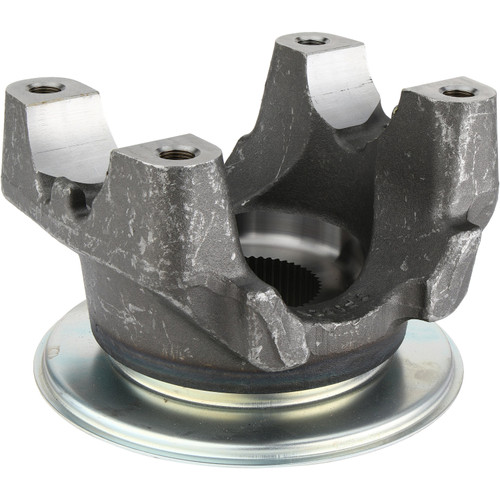

The Dana Spicer 350-4-111-1X or 35041111X is an SPL350 series end yoke designed for PTO shaft driveline applications. It features a splined-hole bore with 46 involute splines and a major diameter of 2.374 inches. Hub diameter (R) measures 3.500 inches, centerline to end of hub (S) is 6.220 inches, and length through hole (Q) is 2.401 inches. The yoke is an HR style and is manufactured from steel. VMRS code 056002014. Order direct from Pro Gear and Transmission, or call us to confirm this yoke matches your driveline setup before ordering.
Features
SPL350 series driveline end yoke, part number 350-4-111-1X or 35041111X
HR yoke style with splined-hole bore, 46 involute splines
Major spline diameter: 2.374 in.
Hub diameter (R): 3.500 in.; centerline to end of hub (S): 6.220 in.
Length through hole (Q): 2.401 in.
Steel construction; VMRS code 056002014
Tech Specs
- Series: SPL350
- Yoke Style: HR
- Type: Splined Hole
- Spline Count: 46
- Involute Spline: Yes
- Major Diameter: 2.374 in.
- Hub Diameter (R): 3.500 in.
- C/L to End Hub (S): 6.220 in.
- Length Thru Hole (Q): 2.401 in.
- Material: Steel
- VMRS: 056002014
