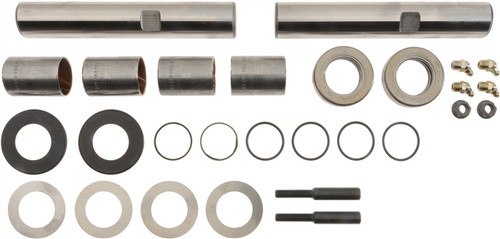

The Dana Spicer 503700 is a king pin kit engineered for Spicer E Series steer axles. The kit centers on king pin 1460SC103, a Type 9 pin measuring 8.66 in. in length and 1.87 in. in diameter. Pre-sized DX10 TDC bushings (part number 1460HD103/104) feature a 2.06 in. O.D. and are supplied in two lengths: 1.4 in. and 1.8 in. Two Type H drawkeys at 4.23 in. and two additional Type H drawkeys at 3.73 in. are included. The thrust bearing (220HC104) measures 1.885 in. I.D., 3.276 in. O.D., and 0.937 in. in height. Cross references include K145E, K145ESTM, and ETN503700. Call us to confirm proper fit for your application.
Features
Spicer E Series steer axle king pin kit, part number 503700
King pin 1460SC103 - Type 9, 8.66 in. length, 1.87 in. diameter
Pre-sized DX10 TDC bushings (1460HD103/104) - 2.06 in. O.D., lengths 1.4 in. and 1.8 in.
Includes 4 Type H drawkeys: two at 4.23 in. and two at 3.73 in.
Thrust bearing 220HC104 - 1.885 in. I.D., 3.276 in. O.D., 0.937 in. height
Cross references: K145E, K145ESTM, ETN503700
Tech Specs
- Model SPICER E SERIES
- Invoice PIN - KING
- Spicer Axle Y
- Pin Number 1460SC103
- Pin Type 9
- Length 8.66
- Diameter 1.87
- Bushing Number 1460HD103/104
- Bushing Material DX10 TDC
- Bushing Type Pre-Sized
- Bushing O.D. 2.06
- Bushing Length 1.4 / 1.8
- Drawkey 1 Type H
- Drawkey 1 Quantity 2
- Drawkey 1 Length 4.23
- Drawkey 2 Type H
- Draw 2 Quantity 2
- VMRS 011001010
- Drawkey 2 Length 3.73
- Thrust Bearing 220HC104
- Thrust Bearing I.D. 1.885
- Thrust Bearing O.D. 3.276
- Thrust Bearing Height 0.937
