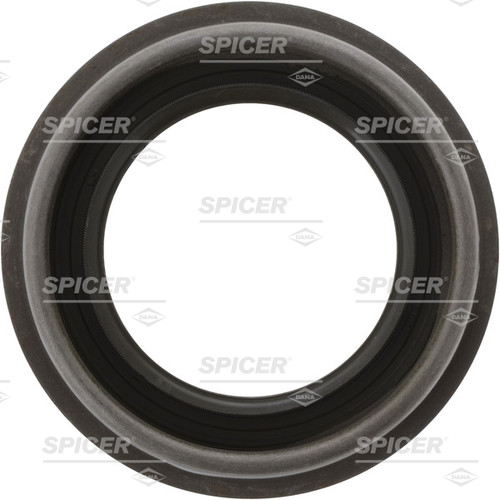

Dana Spicer pinion seal, part number 2014762-1 or 20147621, is engineered for the M190/200 and Dana Super 30 axle models. The seal is manufactured from FKM compound (material code 09816), a fluoroelastomer chosen for its resistance to petroleum-based gear oils and operating heat. Dimensional specs: 1.875 in. inside diameter and 3.160 in. outside diameter. These measurements make it specific to this axle family, so confirm your axle model before ordering. Sold individually as a genuine Dana Spicer part through Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Fits M190/200 and Dana Super 30 axle models
FKM fluoroelastomer material (compound code 09816) for oil and heat resistance
1.875 in. inside diameter
3.160 in. outside diameter
Genuine Dana Spicer part, sold individually
Alternate part number format: 20147621
Tech Specs
- Axle Model: M190/200 and Dana Super 30
- Part Type: Pinion Oil Seal
- Material: FKM fluoroelastomer (compound 09816)
- Inside Diameter: 1.875 in.
- Outside Diameter: 3.160 in.
- Sold: Individually
