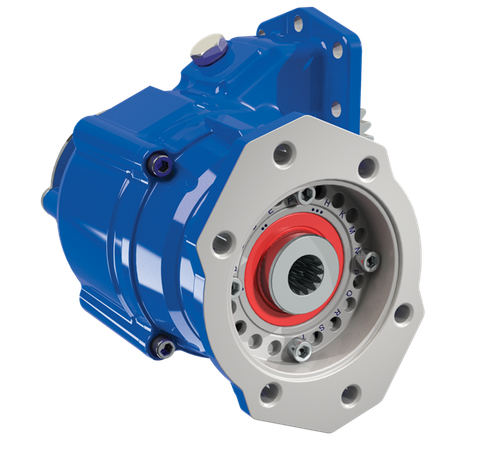

The Muncie A30-A1005-MX1ZBPX or A30A1005MX1ZBPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series transmissions. The rotatable pump flange and three available housing arrangements give installers flexibility to suit a wide range of hydraulic and auxiliary-drive setups. Tapered roller bearings extend service life, and an increased-diameter output shaft adds durability at the drive end. Extended-length PTO mounting fasteners and additional installation clearance simplify mounting. Reduced leak paths throughout and an optimized gear design keep noise down in demanding duty cycles. The A30 Series carries a single intermittent and continuous torque rating and is compatible with the Muncie EX Drive shaft extension. Call us to confirm proper fit for your specific transmission and chassis application.
Features
10-bolt constant drive mounting for Allison 3000 and 4000 Series transmissions
Rotatable pump flange accommodates multiple hydraulic pump orientations
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for added drive-end durability
Three housing arrangements to fit varied installation requirements
Compatible with Muncie EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
