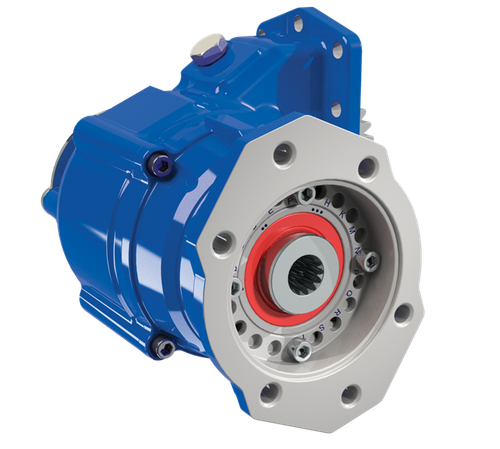

The Muncie A30-A1007-MX3BSPX or A30A1007MX3BSPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The A30 Series uses tapered roller bearings for extended service life and carries a single intermittent/continuous torque rating that simplifies spec selection. A rotatable pump flange and increased installation clearance make mounting straightforward. The output shaft diameter is enlarged compared to previous designs for added durability, and the gear geometry is optimized to minimize operating noise. Three housing arrangements are available, and the unit is compatible with the EX Drive shaft extension. Available from Pro Gear and Transmission. Call us to confirm proper fitment for your application.
Features
10-bolt constant drive mount for Allison 3000 and 4000 Series transmissions
Rotatable pump flange for flexible installation orientation
Tapered roller bearings for increased PTO service life
Enlarged output shaft diameter for higher durability
Three housing arrangements to suit different installation requirements
Compatible with EX Drive shaft extension for extended reach applications
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
