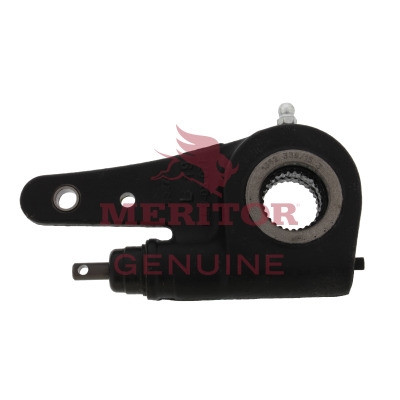

The Meritor automatic slack adjuster, part number A20-3275X1194 or A203275X1194, is a stroke-sensing, unhanded ASA designed for drum brake applications. It features a 1.50-inch spline diameter with a 28-spline count and a 5.50-inch arm length. The yellow-piston design is compatible with chamber sizes 24 or 30, and the bushing inside diameter measures 0.50 inch. The adjuster is supplied unclevised; the related clevised number is R802649, and the related clevis kit is R810019. This adjuster is also referenced within Meritor assembly R803199. Call us to confirm proper fit for your application.
Interchanges:
- 8235A203275X1194
- TDAA203275X1194
Features
Unhanded design fits left- or right-side installations
1.50 in. spline diameter, 28-spline count
5.50 in. arm length
Stroke-sensing automatic adjustment for drum brake systems
Compatible with chamber sizes 24 or 30
Supplied unclevised; related clevis kit R810019 and clevised number R802649 available separately
Tech Specs
- Slack Spline Diameter: 1.50 in.
- Slack Spline Count: 28
- Arm Length: 5.50 in.
- Bushing Inside Diameter: 0.50 in.
- Chamber Sizes: 24 or 30
- Sensing Type: Stroke
- Clevis Type: Unclevised
- Brake Type: Drum Brake
- Piston: Yellow
- Type: Unhanded
- Maximum Torque Rating: More than 45 inch pounds
- Related Clevised Number: R802649
- Related Clevis Kit: R810019
- VMRS Code: 013-017-005
- Used In Assembly: R803199
