A refundable core charge of $50.40 applies to this item and will be collected at checkout. The core charge is refunded upon receipt of your returned core, subject to its condition; customer is responsible for return shipping. Call us at (877) 776-4600 for details.
Features
Reman. RG2 Relay Valve
A fast relay used to apply and release service brakes on tractor or trailer.
Cracking pressure: 5.6 +/- 1.0 PSI.
Compact size.
Control Port 1/4".
Two port delivery.
Two mounting holes, .34 diameter on 1.50" centers.
Cover may be rotated without affecting warranty or performance.
Control position is in relationship to delivery ports.
Approximate Weight: 1.5 lbs.

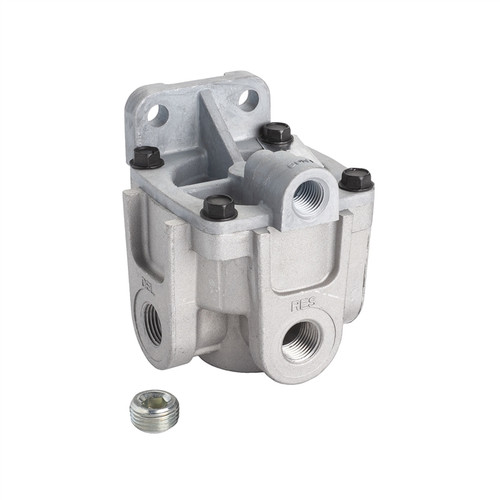

Picture illustrates 90° control port position. 0° would locate port in line with delivery port "D".
Tech Specs
- Supply A 3/8"
- Supply B 1/2"
- Delivery C 3/8"
- Delivery D 3/8"
- Control Position 90°
- Plugs Included 1 @ 3/8"
- OEM Part Number N30108AK
- Core Group 225
- Width 3-1/2"
- Length 3-1/2"
- Height 3-5/8"
- Contol Port 1/4"
- Cracking Pressure 5.6 ± 1.0 PSI
- Mounting Holes (2) .34" diameter on 1.50" centers
- Approximate Weight 1.5 lbs.
Additional Information
Available CoreFreeâ„¢, order KN28510RX.Repair Kit use part number RN10HM.
