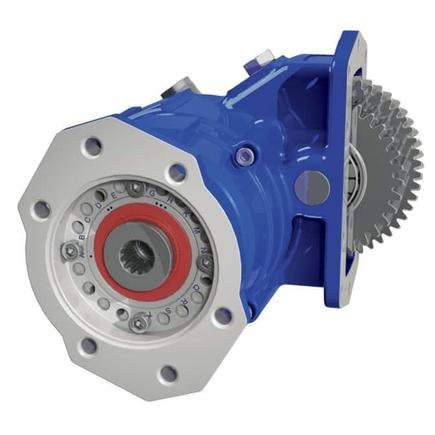

The Muncie A20-A1008-SX5CBPW or A20A1008SX5CBPW is a medium-duty, 10-bolt clutch shift power take-off from the Muncie A20 Series, designed specifically for Allison 3000 and 4000 Series transmissions. The shift cover rotates a full 360 degrees for flexible installation, and the pump flange is rotatable as well, giving hydraulic plumbing more routing options. Increased clearance around the unit makes installation easier in tight mounting situations. Tapered roller bearings extend service life, and the enlarged output shaft diameter handles demanding continuous-duty cycles. Gear geometry has been optimized to reduce operating noise. The unit carries a single intermittent/continuous torque rating, comes in three housing arrangements, and is compatible with the EX Drive shaft extension. Call us to confirm the right housing and ratio for your application.
Features
10-bolt clutch shift design for Allison 3000 and 4000 Series transmissions
Rotatable pump flange and 360-degree-rotating shift cover for flexible mounting and plumbing
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher load capacity
Maximized gear design for reduced operating noise
Compatible with EX Drive shaft extension; three housing arrangements available
Tech Specs
- Mounting: 10-bolt
- Shift type: Clutch shift
- Application: Allison 3000 Series and 4000 Series transmissions
- Shift cover rotation: 360 degrees
- Housing arrangements: 3
- Output shaft: Increased diameter design
- Bearings: Tapered roller
- Pump flange: Rotatable
- Compatible accessory: EX Drive shaft extension
- Speed ratio 5 - 3000 Series engine %: 74% / 4000 Series engine %: 105% / HP (kW) @ 1,000 RPM: 77 (57) / Torque lbs.ft. (Nm): 400 (542)
- Speed ratio 6 - 3000 Series engine %: 85% / 4000 Series engine %: 122% / HP (kW) @ 1,000 RPM: 77 (57) / Torque lbs.ft. (Nm): 400 (542)
- Speed ratio 7 - 3000 Series engine %: 99% / 4000 Series engine %: 141% / HP (kW) @ 1,000 RPM: 79 (59) / Torque lbs.ft. (Nm): 415 (563)
- Speed ratio 8 - 3000 Series engine %: 114% / 4000 Series engine %: 163% / HP (kW) @ 1,000 RPM: 69 (51) / Torque lbs.ft. (Nm): 360 (488)
- Speed ratio 9 - 3000 Series engine %: 122% / 4000 Series engine %: 175% / HP (kW) @ 1,000 RPM: 65 (48) / Torque lbs.ft. (Nm): 340 (461)
- Speed ratio 10 - 3000 Series engine %: 131% / 4000 Series engine %: 187% / HP (kW) @ 1,000 RPM: 59 (44) / Torque lbs.ft. (Nm): 310 (420)
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
