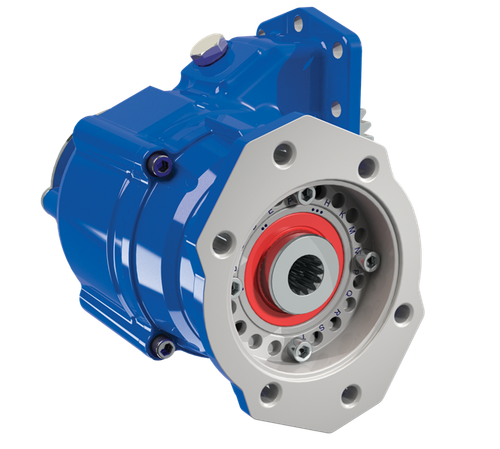

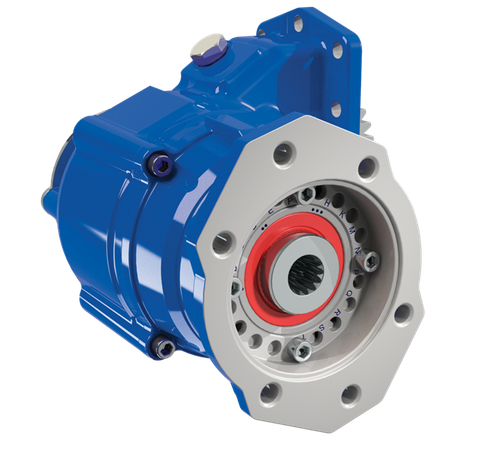

The Muncie A30-A1006-MX3BSPX or A30A1006MX3BSPX is a 10-bolt constant drive power take-off from Muncie's A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The A30 Series features a rotatable pump flange and three housing arrangements, giving installers real flexibility to match installation geometry. Tapered roller bearings extend PTO service life, and an increased output shaft diameter adds durability under sustained loads. Reduced leak paths and extended-length PTO mounting fasteners simplify service. The unit is compatible with the Muncie EX Drive shaft extension, broadening output configurations. Call us to confirm proper fit for your specific transmission and application.
Features
10-bolt constant drive mounting for Allison 3000 and 4000 Series transmissions
Rotatable pump flange with three housing arrangements for installation flexibility
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for sustained-load durability
Reduced leak paths and extended-length PTO mounting fasteners
Compatible with Muncie EX Drive shaft extension
Tech Specs
Additional Information
SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
5 | 74% | 105% | 77 (57) | 400 (542) |
6 | 85% | 122% | 77 (57) | 400 (542) |
7 | 99% | 141% | 79 (59) | 415 (563) |
8 | 114% | 163% | 69 (51) | 360 (488) |
9 | 122% | 175% | 65 (48) | 340 (461) |
10 | 131% | 187% | 59 (44) | 310 (420) |
11 | 151% | 215% | 52 (39) | 275 (373) |
12 | 162% | 231% | 50 (37) | 265 (359) |
15 | 201% | 287% | 39 (29) | 205 (278) |
