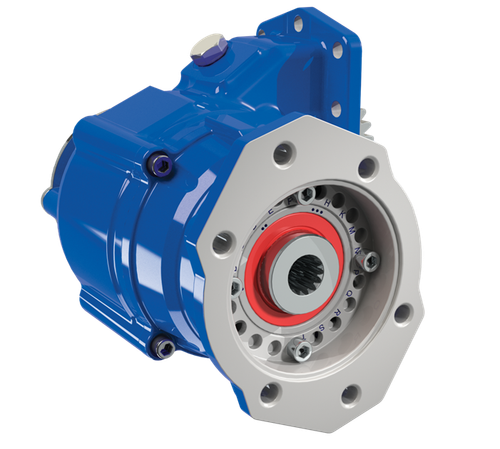

The Muncie A30-A1008-MX3CBPX or A30A1008MX3CBPX is a 10-bolt constant drive power take-off from the Muncie A30 Series, designed for Allison 3000 and 4000 Series automatic transmissions. The A30 Series features a rotatable pump flange that simplifies mounting orientation, and extended-length PTO mounting fasteners with increased clearance for easier installation in tight engine compartments. Tapered roller bearings are used throughout for extended service life, and the increased-diameter output shaft raises durability under sustained load. The gear set is engineered for reduced noise, and the design carries a single intermittent/continuous torque rating. Three housing arrangements are available, and the unit is compatible with the EX Drive shaft extension for applications requiring additional reach. Call us to confirm proper fit for your application.
Features
10-bolt constant drive configuration for Allison 3000 and 4000 Series transmissions
Rotatable pump flange allows flexible mounting orientation
Tapered roller bearings for extended PTO service life
Increased output shaft diameter for higher load durability
Three housing arrangements to suit different installation requirements
Compatible with EX Drive shaft extension
Tech Specs
Additional Information
| SPEED | 3000 SERIES | 4000 SERIES | INTERMITTENT CONTINUOUS HP (KW) | INTERMITTENT/CONTINOUS |
| RATIO | ENGINE % | ENGINE % | @ 1,000 RPM | TORQUE LBS.FT. (NM) |
| 5 | 74% | 105% | 77 (57) | 400 (542) |
| 6 | 85% | 122% | 77 (57) | 400 (542) |
| 7 | 99% | 141% | 79 (59) | 415 (563) |
| 8 | 114% | 163% | 69 (51) | 360 (488) |
| 9 | 122% | 175% | 65 (48) | 340 (461) |
| 10 | 131% | 187% | 59 (44) | 310 (420) |
| 11 | 151% | 215% | 52 (39) | 275 (373) |
| 12 | 162% | 231% | 50 (37) | 265 (359) |
| 15 | 201% | 287% | 39 (29) | 205 (278) |
