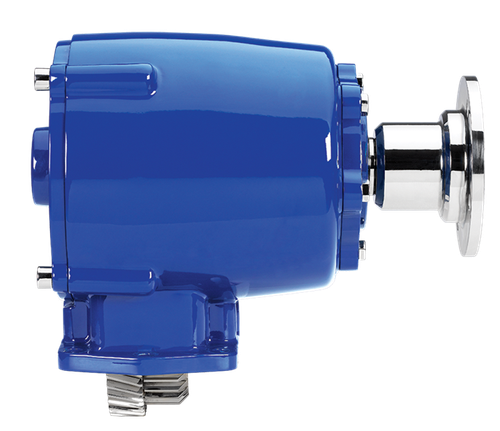

The Muncie CS41-A1007-H1EB or CS41A1007H1EB is a 10-bolt heavy-duty clutch shift power take-off from the Muncie CS41 Series, designed for Allison 3000 and 4000 series and Caterpillar CX transmissions. Mounting options include SAE "C" and DIN 5462 direct mount flanges, both rotatable for pump clearance, plus a 1410 series remote mount output shaft for remote pump drive installations. The unit ships in one of two assembly arrangements, allowing the PTO to be positioned shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is built in. At a speed ratio of 07, intermittent torque reaches 600 lb-ft (813 Nm) and continuous torque is 420 lb-ft (569 Nm). Maximum output speed on fire pump applications is 4,000 RPM. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
SAE "C" and DIN 5462 direct mount flanges, rotatable to maximize pump clearance
1410 series remote mount output shaft for remote pump drive configurations
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Precision ground gears for high torque capacity and quiet operation
Maximum output speed of 4,000 RPM on fire pump applications
Tech Specs
- Part Number: CS41-A1007-H1EB or CS41A1007H1EB
- Series: CS41 (Clutch Shift)
- Mount: 10-bolt
- Direct Mount Options: SAE "C" and DIN 5462
- Remote Output: 1410 Series
- Max Output Speed (Fire Pump): 4,000 RPM
- Pressure Lubrication: Standard
Additional Information
| CS41 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
