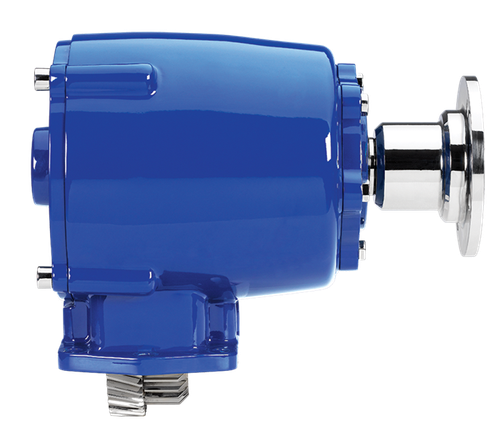

CS41-A1007-J3CB Muncie CS41 Series PTO

The Muncie CS41-A1007-J3CB or CS41A1007J3CB is a 10-bolt heavy-duty clutch shift power take-off designed for Allison 3000 and 4000 series and Caterpillar CX transmissions. It uses precision ground gears for high torque capacity and quiet operation, supported by extra-large bearings throughout. The 1410 series remote mount output shaft suits remote pump drives, while S.A.E. "C" and DIN 5462 direct mount flanges fit most high-power-input pumps. Two assembly arrangements let you mount the unit shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included. For fire pump applications, maximum output speed is 4,000 RPM. Call us to confirm proper fit for your application.

Features

10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears deliver high torque capacity with quiet operation
1410 series remote mount output shaft for remote pump drives
S.A.E. "C" and DIN 5462 direct mount flanges fit most high-power-input pumps
Rotatable direct mount flanges allow pump positioning for maximum clearance
Two assembly arrangements: mount shaft-high or shaft-low on either side of the transmission
Standard pressure lubrication included
Maximum output speed of 4,000 RPM on fire pump applications

Tech Specs

•
•
•
• Series: CS41 (Clutch Shift)
• Mount: 10-bolt heavy duty
• Compatible Transmissions: Allison 3000 series, Allison 4000 series, Caterpillar CX
• Output Shaft: 1410 series remote mount
• Direct Mount Options: S.A.E. "C" 2/4-bolt flange, DIN 5462
• Assembly Arrangements: Two (shaft-high or shaft-low, either side of transmission)
• Lubrication: Standard pressure lubrication
• Max Output Speed (fire pump): 4,000 RPM
