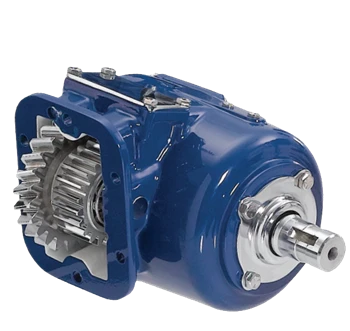

The Muncie CS8S-U6005-P1KX or CS8SU6005P1KX is a CS8 Series 8-bolt clutch shift power take-off designed to fit most popular automatic and manual transmissions, including Allison 1000/2000 series. Direct mount pump options cover SAE "A", "B", and "BB" as well as DIN 5462 flanges, and the rotatable flanges let you position the pump for maximum clearance. Three remote mount output shafts are available in keyed and flange types for versatility in remote pump drive setups. Muncie's patented drag brake prevents shaft rotation when the PTO is in the OFF position. An optional pulse generator is available for use with a System Protection Device to monitor PTO shaft speed. Call us to confirm the right configuration for your application.
Features
CS8 Series 8-bolt clutch shift power take-off
Patented Muncie drag brake prevents shaft rotation in OFF mode
SAE "A", "B", and "BB"; DIN 5462 direct mount pump options
Rotatable direct mount flanges for maximum pump clearance
Three remote mount output shaft types: keyed and flange
Optional pulse generator compatible with System Protection Device for PTO shaft speed monitoring
Tech Specs
- Part Number: CS8S-U6005-P1KX or CS8SU6005P1KX
- Series: CS8
- Shift Type: Clutch Shift (8-Bolt)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Direct Mount Pump Options: SAE "A", SAE "B", SAE "BB", DIN 5462
- Remote Mount Output Shafts: Keyed and flange types
- Drag Brake: Patented Muncie drag brake
- Compatible Transmissions: Allison 1000/2000 series and many manual transmissions
