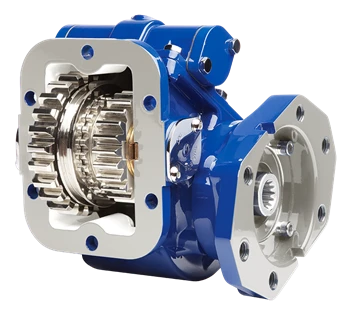

The Muncie SH8B-U6805-E3ZX (also referenced as SH8BU6805E3ZX) is an SH8 Series power take-off built for high-torque applications. It uses an integral air shift design with no exposed air cylinder, and mounts via an 8-bolt cast iron housing. The SH Series was created to bridge the gap between Muncie's TG and 82 Series PTOs. Five speed ratios cover a wide range of application demands, and 17 input gear sets accommodate most popular transmissions. Twelve output shaft options fit most common pump types. Torque ratings vary by speed ratio, reaching up to 400 ft-lb intermittent and 280 ft-lb continuous at the 05 and 07 speed ratios. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for strength and straightforward mounting
17 input gear sets to fit most popular transmissions
5 speed ratios for application versatility
12 output shaft options to match most common pump types
Up to 400 ft-lb intermittent torque (76 HP at 1000 RPM) at 05 and 07 speed ratios
Tech Specs
- Speed Ratio 05: 76 HP intermittent at 1000 RPM, 400 ft-lb intermittent torque, 280 ft-lb continuous torque
- Speed Ratio 07: 76 HP intermittent at 1000 RPM, 400 ft-lb intermittent torque, 280 ft-lb continuous torque
- Speed Ratio 09: 71 HP intermittent at 1000 RPM, 375 ft-lb intermittent torque, 263 ft-lb continuous torque
- Speed Ratio 12: 62 HP intermittent at 1000 RPM, 325 ft-lb intermittent torque, 228 ft-lb continuous torque
- Speed Ratio 13: 62 HP intermittent at 1000 RPM, 325 ft-lb intermittent torque, 228 ft-lb continuous torque
- Housing: 8-bolt cast iron
- Shift type: Air shift (integral, no exposed air cylinder)
- Input gear sets: 17
- Output shaft options: 12
- Speed ratios available: 5
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
