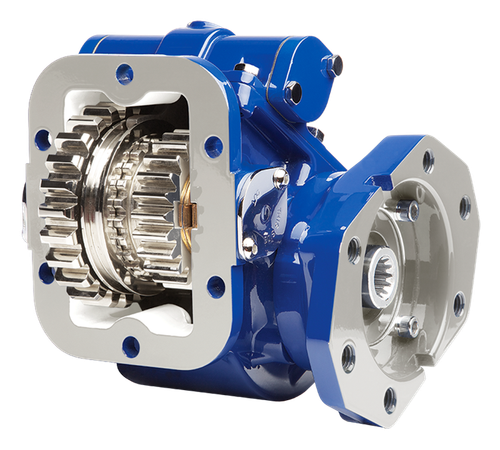

TG6N-S7115-A2SH Muncie PTO

The Muncie TG6N-S7115-A2SH or TG6NS7115A2SH is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing delivers reduced noise and superior heat dissipation compared to iron alternatives. A constant mesh input gear isolates the transmission from engagement errors during shifting. Overall dimensions are 9.13" H x 10.38" W x 12.5" L, making it a compact unit that minimizes mounting interference. Rotatable hydraulic flanges allow pump clearance adjustment without repositioning the unit. The modular design simplifies repair and makes component replacement straightforward. Call us to confirm proper fit for your transmission and application.

Features

TG6 Series double-gear PTO with 6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing reduces noise and provides superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Modular design allows easy field repair and component replacement
Compact footprint: 9.13" H x 10.38" W x 12.5" L

Tech Specs

•
• Housing Bolt Pattern: 6-bolt
• Shift Type: Mechanical shift
• Housing Material: Die-cast aluminum
• Height: 9.13 in.
• Width: 10.38 in.
• Length: 12.5 in.

Additional Information

PTO TORQUE & HORSEPOWER RATINGS
Speed Ratio	Intermittent HP @ 1000 RPM	Intermittent Torque (lb-ft)	Continuous Torque (lb-ft)	Intermittent (kW) @ 1000 RPM	Intermittent Torque (Nm)	Continuous Torque (Nm)
04	54	285	200	(40)	(386)	(270)
05	51	270	189	(38)	(366)	(256)
06	47	245	172	(35)	(332)	(232)
07	44	230	161	(33)	(312)	(218)
08	44	230	161	(33)	(312)	(218)
09	39	205	144	(29)	(278)	(195)
12H	40	210	147	(30)	(284)	(199)
13H	40	210	147	(30)	(284)	(199)
15H	37	195	137	(28)	(264)	(185)
18H	33	175	123	(25)	(237)	(166)
