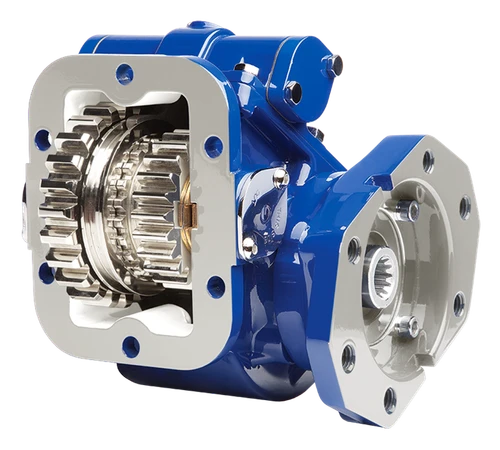

The Muncie TG6N-S7115-S3PH or TG6NS7115S3PH is a TG Series double-gear power take-off built on one of the most widely used PTO platforms in the heavy-duty truck industry. The TG Series accommodates 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears covering most popular transmissions. The die-cast aluminum housing keeps the unit compact while improving heat dissipation. A constant mesh input gear isolates the transmission from engagement errors, and the extra-large shift cover opening simplifies backlash inspection. Electric or hydraulic shift is available, eliminating the need for shift cables. The housing accepts a 6 or 8-bolt mounting pattern. Call us to confirm proper fit for your transmission and application.
Features
Die-cast aluminum housing reduces noise and improves heat dissipation
6 or 8-bolt housing for simplified installation on most popular transmissions
Constant mesh input gear isolates the transmission from engagement errors
Electric or hydraulic shift option eliminates the need for shift cables
Extra-large shift cover opening allows easy backlash inspection
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
