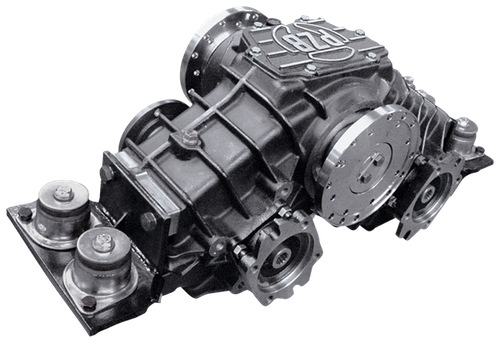

The Muncie SSV2-14X5-EDXLXX or SSV214X5EDXLXX is a heavy-duty Split Shaft PTO designed for multiple simultaneous output drives. Precision ground gearing delivers quiet, high-torque power transfer with a maximum thru-shaft torque rating of up to 21,600 lb-ft and a maximum PTO output torque of up to 940 lb-ft. Air-shift controls handle activation, and each output can be engaged or disengaged independently via the clutch-shift option without interrupting other drive functions. PTO outputs accommodate SAE "B" through SAE "D" pump mounts and Spicer 1410-to-1500 companion flanges. Available in upright or horizontal configurations. A frame mounting kit option using isolation-type mounts simplifies installation. Call us to confirm proper fit for your application.
Maximum PTO Output Torque: Up to 940 lb-ft
PTO Outputs: 4 total (2 front, 2 rear)
Pump Mount Range: SAE "B" through SAE "D"
Companion Flanges: Spicer 1410 to 1500 series
Available Configurations: Upright or horizontal
Mounting Option: Frame mounting kit with isolation-type mounts
Features
Up to 21,600 lb-ft maximum thru-shaft torque rating
Up to 940 lb-ft maximum PTO output torque
Four PTO outputs (2 front, 2 rear) with SAE "B" through SAE "D" pump mounts and Spicer 1410-to-1500 companion flanges
Air-shift controls for straightforward output activation
Clutch-shift option allows each output to be engaged independently without stopping other functions
Available in upright or horizontal mounting orientation; optional frame mounting kit with isolation-type mounts
Tech Specs
Additional Information
Maximum Thru-Shaft Torque: Up to 21,600 lb-ftMaximum PTO Output Torque: Up to 940 lb-ft
PTO Outputs: 4 total (2 front, 2 rear)
Pump Mount Range: SAE "B" through SAE "D"
Companion Flanges: Spicer 1410 to 1500 series
Available Configurations: Upright or horizontal
Mounting Option: Frame mounting kit with isolation-type mounts
