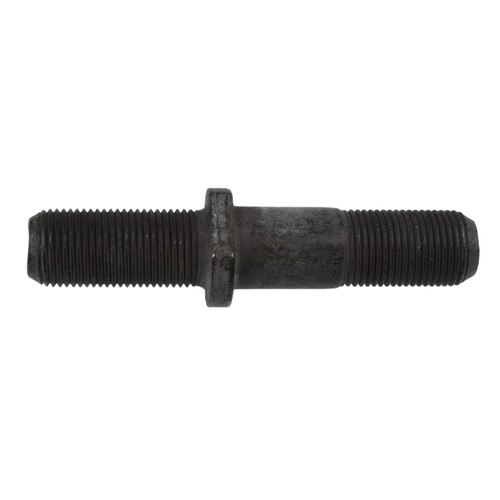

10 Pack Meritor Stud-R.H. P/N: R005924R.This item is no longer available. Meritor parts are just a click or call away.
This unit is sold in packs of 10.
Tech Specs
- Metric Thread Size:3/4-16 UNF-2A
- Length from Under Head:3 13/32 in.
- Thread Direction:RH
- Type:Headed w/Drum Shoulder
- Head Style:Wedge
- Body Length:1.44 in. (1.38-1.50)
- Thread:3/4"-16
- Body Diameter:0.795 in./0.789 in.
- Grade:8
- OEM:Meritor 20-X-1334, 20-X-1464, 20-X-1978
- Head Thickness:0.35 in.
- Thread Length:1.66 in.
- Threads per Inch:16
- Thread Diameter:0.75 in.
- VMRS Code:018-003-009
- Notes:Stepped Body Diameter
- Head Diameter:1.50 in.
