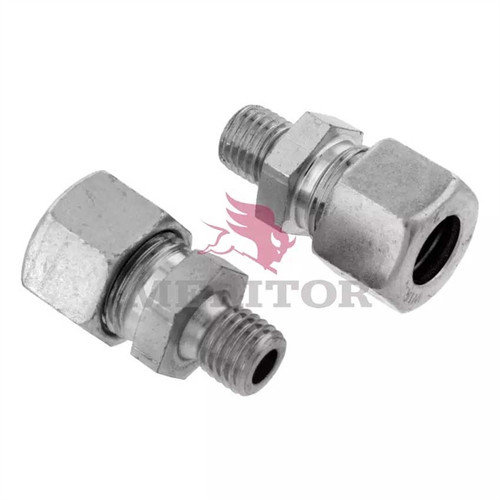

The Wabco Bulkhead Coupling, part number 893-800-984-0 or 8938009840, is sold here as a 2-pack of OE-specification components for heavy-duty air system plumbing. Each fitting features an M12 x 1.5 thread and accepts 0.47 in diameter tubing. Overall dimensions are 40 x 24 x 22 mm, with a body length of 1.34 in and a shoulder length of 0.39 in. Two wrench flats are provided: 0.75 in and 0.87 in, allowing secure installation and removal without deforming the fitting body. These are genuine Wabco parts meeting original equipment specification. Call us to confirm this coupling fits your specific air brake or air system configuration before ordering.
This unit is sold in packs of 2.
Features
Sold as a 2-pack of OE-specification bulkhead couplings
Part number: 893-800-984-0 or 8938009840
M12 x 1.5 thread for secure, leak-resistant connection
0.47 in tube diameter compatibility
Dual wrench flats: 0.75 in and 0.87 in for proper torquing
Overall dimensions: 40 x 24 x 22 mm (L1: 1.34 in, L2: 0.39 in)
Tech Specs
- Brand: Wabco
- Part Number: 893-800-984-0 or 8938009840
- Product Category: Component
- Technical Specification: OE specification
- Thread: M12 x 1.5
- Tube Diameter: 0.47 in
- Body Length (L1): 1.34 in
- Shoulder Length (L2): 0.39 in
- Wrench Size 1: 0.75 in
- Wrench Size 2: 0.87 in
- Overall Dimensions: 40 x 24 x 22 mm
- Quantity: 2-pack
