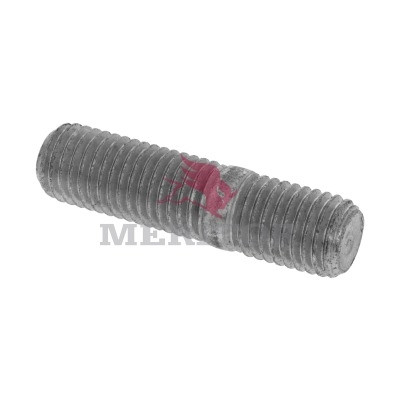

Meritor R004956A is a spoke-wheel stud for drum brake and wheel-end applications. Each stud measures 3 inches in overall length with a 3/4"-10 thread on both the hub end and the wheel end. Hub end thread length is 1-1/16 in.; wheel end thread length is 1.75 in. The wheel end thread direction is right-hand (RH). Listed under the No Collar collar style, this stud is an active Meritor part cataloged in PB8857, the Meritor Drum Brake and Wheel End Catalog. This listing is sold as a 25-pack. Call us to confirm proper fit for your application.
Trailmobile: 898
Transit Parts: TP815
Webb: 171027
World Truck: 15429007
Additional references: TWDR004956A, W6, W855, WA1282, WE4956, WEP06003, WT6001
Interchanges:
- TWDR004956A
- W855
- WA1282
- WE4956
- WEP06003
- WT6001
- Automann 2034005
- Automann 2034005B
- BWP M39
- Dayton Parts Batco 136003
- Dayton Parts Batco 136005
- Erie 5259
- Goodyear ST29
- Great Lakes GL3002
- Great Lakes GL3003
- Gunite WP147
- Gunite WP147/WP855
- Gunite WP855
- National Wheel & Rim B612
- Trailmobile 898
- Transit Parts TP815
- Webb 171027
- World Truck 15429007
This unit is sold in packs of 25.
Features
Meritor part number R004956A, active OEM status
Overall length: 3 in.
Hub end thread: 3/4"-10, thread length 1-1/16 in.
Wheel end thread: 3/4"-10 RH, thread length 1.75 in.
Spoke wheel type, No Collar collar style
Tech Specs
- Overall Length: 3 in.
- Hub End Thread: 3/4"-10
- Hub End Thread Length: 1-1/16 in.
- Wheel End Thread: 3/4"-10
- Wheel End Thread Length: 1.75 in.
- Wheel End Thread Direction: Right-Hand (RH)
- Collar Style: No Collar
- Wheel Type: Spoke Wheel
- Unit Pack: 25
- VMRS Code: 018-003-009
- Catalog Reference: PB8857 - Meritor Drum Brake and Wheel End Catalog
Additional Information
National Wheel and Rim: B612Trailmobile: 898
Transit Parts: TP815
Webb: 171027
World Truck: 15429007
Additional references: TWDR004956A, W6, W855, WA1282, WE4956, WEP06003, WT6001
